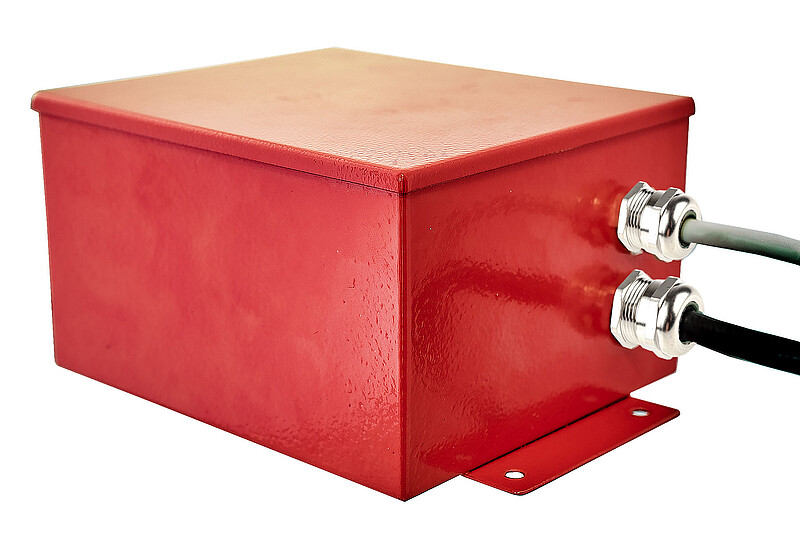

HEI
High Energy Igniter
Your advantages at a glance:
- Ignites gaseous fuels in burners of any capacity
- Compact design: control unit and ignition lance form a single unit
- Combined with NFPA 8501/8502 class 3 special (electric igniter)
- Available for hazardous areas
- Very good spark quality
- IP65
The non-fuel based high energy igniter is used in the
following applications:
- Oil and gas
- Petrochemical
- Chemical
It is used for the following purposes:
- Ignition of the main fuel
The HEI500 can be operated with following fuel:
- Gas without moisture and contamination as LPG or LNG
- LFO on request
Temperature range:
- -20 °C ... + 60 °C (Standard)
- -40 °C ... + 60 °C (Customized solution)
Scope of application:
- Safer Range

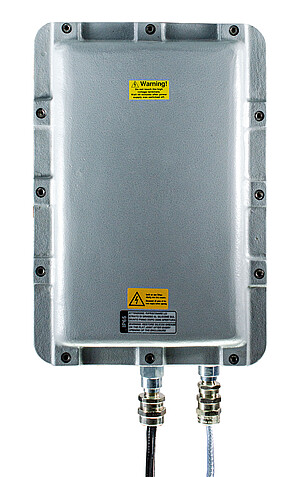

- Ex zone 2
 |  |
| Cast steel housing HEI500 | Ignition lance |
| Technical Data | |
| Approvals |
CE Declaration of Conformity
|

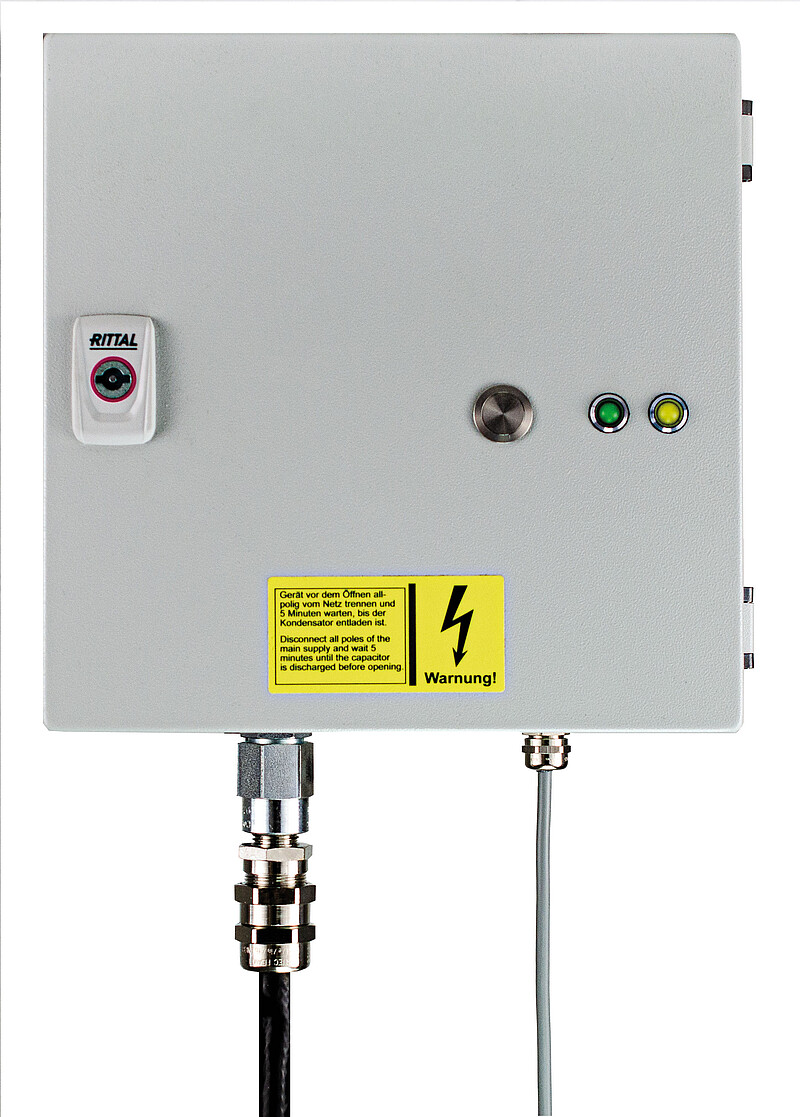

| HEI500 | HEI600 | |
| Energy [J] | 18 | 10 |
| Spark / sec. (frequency) [Hz] | 2 | 26 |
| Ignition energy / sec. (max) [J] | 36 | 260 |
| Power supply | 115/230 VAC 50/60 Hz | 115/230 VAC 50/60 Hz |
| Ambient temperature | -20 ... +60 °C | -20 ... +60 °C |
| Protection class | IP65 | IP65/66 |
| Fuels | Gas without moisture and pollution, such as LPG or LNG | All types of gases, LFO, HFO up to no. 6 bunker C (HFO analysis necessary) |

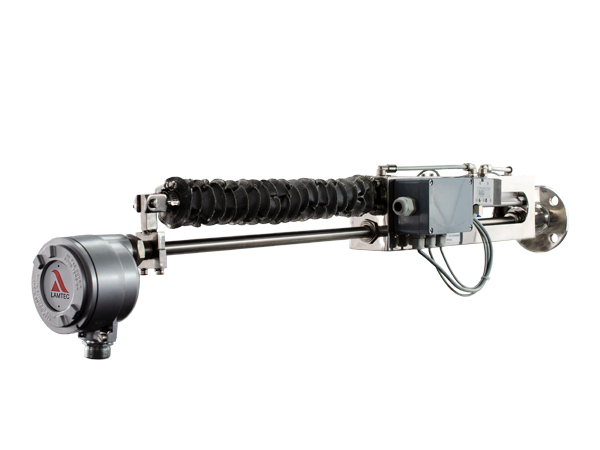

- Retraction unit safe area
- Retraction unit Ex zone 2
- Ignition tip standard
- Ignition tip high temperature
- Ignition lance housing with stainless steel design
You can find additional accessories in the
product catalogue.
Accessories available via our sales representatives
Further downloads can be found in the support section .
