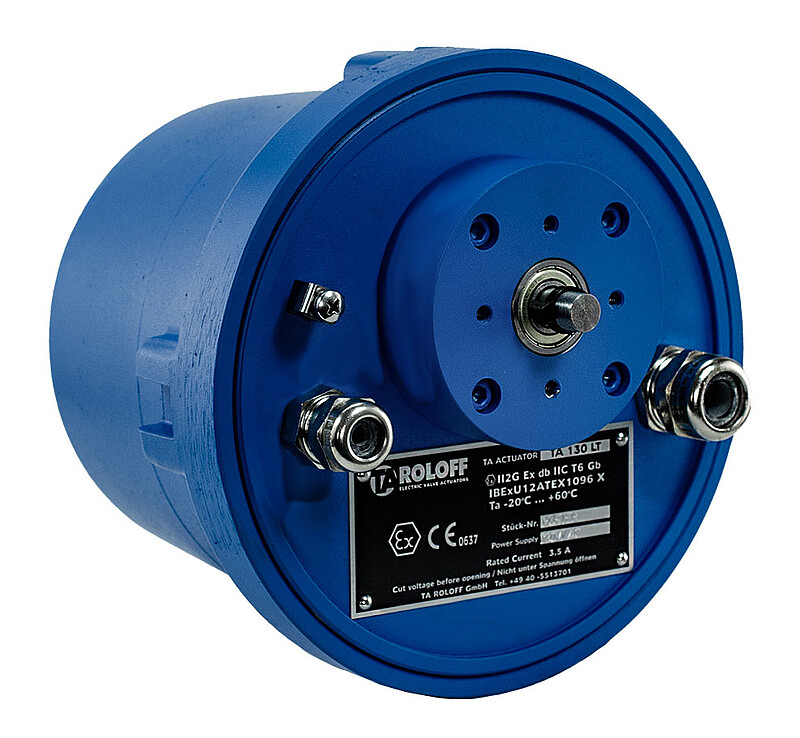

Actuator for Ex zone 1
for VMS, FMS, ETAMATIC / for CMS only with individual approval
Your advantages at a glance:
- Certified for Ex zone 1
- ATEX II2G Ex d IIC T6 Gb
- IECEx IBE 14 0056 Ex
- Available with 6, 20, 30, 40 and 50 Nm torque
- Protection class IP65
- Optionally with integrated electronic control for control via 4 ... 20 mA
- Wave form: 12 x 25 with feather key 4 x 4 x 14 and colour: RAL5015
- Ambient temperature:
ATEX -20 °C ... +60 °C/
IECEx -20 °C ... +40 °C
Note: Further configurations on request
Actuator 662RX
- suitable for ETAMATIC, FMS, VMS, and other applications in combustion technology, process technology, and industry
- suitable for CMS only with individual approval
To drive the dampers and valves on your firing systems, LAMTEC offers the tried-and-tested and safety-approved actuators for electronic compounds following the motto "Everything from a single source".
These actuators comply with the safety requirements for tested potentiometers and their positive locking and backlash-free connection. Five types of actuators are available from stock at LAMTEC: 6 Nm, 20 Nm, 30 Nm, 40 Nm and 50 Nm - all with 60-sec. running time.
| Technical Data | |
| Approvals |
CE Declaration of Conformity
EX certificate
|
You can find additional accessories in the
product catalogue.
Accessories available via our sales representatives
Further downloads can be found in the support section .
All products in this category
Actuator TPS 4,5 Nm
Electric actuator 4.5 Nm, DPS, position feedback via 5 kΩ potentiometer, protection class IP65

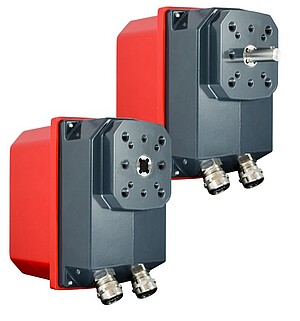

Actuator TPS 6-40 Nm
Electronic actuator 6-40 Nm, TPS, feedback potentiometer 5 kΩ, conductive plastic, limit switches to limit the actuator, electric hand feed, degree of protection IP65

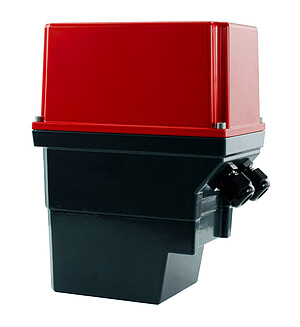

Actuator TPS 60 Nm
