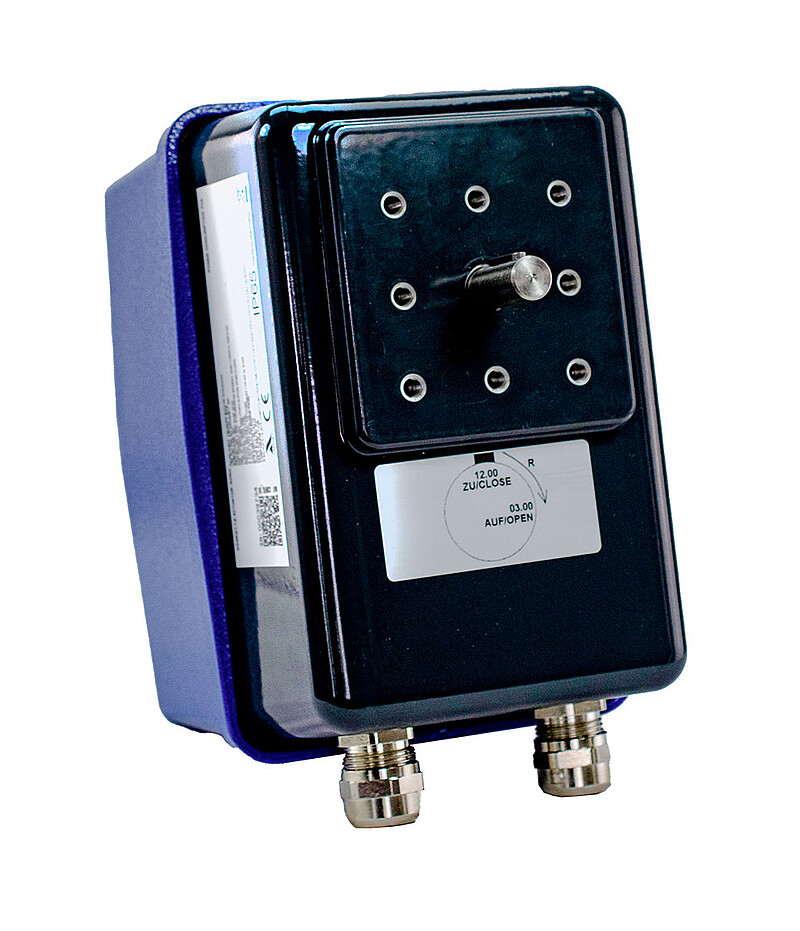

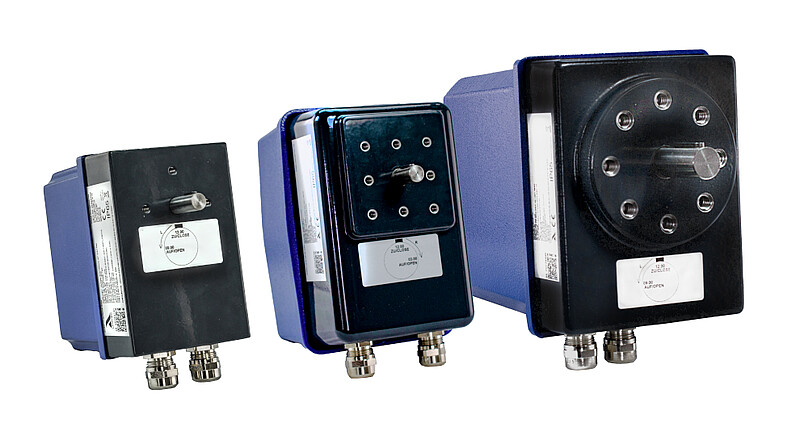

Actuators 662RX 30, 40 and 50 Nm
Electronic Actuator
Your advantages at a glance:
- Electric actuator 30, 40 or 50 Nm
- Optionally with NOVOTEC/CONTELEC 5 kΩ potentiometer as feedback, conductive plastic
- Aluminium housing…
- with plastic cover IP54
- with metal cover IP54
- with aluminum cover IP65 - 2 limit switches, 2 additional switches
- Electric hand feed OPEN/CLOSE via push button
- Ambient temperature: -10 °C … +60 °C
- Optionally with integrated electronic control for control via 4 ... 20 mA
- TÜV approval for use with ETAMATIC, FMS, VMS
- waveform: 12 x 30 mm Form C03
Actuator 662RX
- suitable for ETAMATIC, FMS, VMS and other applications in combustion technology and industry
These actuators meet the safety requirements regarding the use of tested potentiometers and their positive locking and backlash-free connection at a running time of 60 seconds. Running times may vary depending on the configuration with limit switches and potentiometers.
| Technical Data |
Further information can be found in our product catalog. |
| Approvals |
CE Declaration of Conformity
|
Further downloads can be found in the support section.
