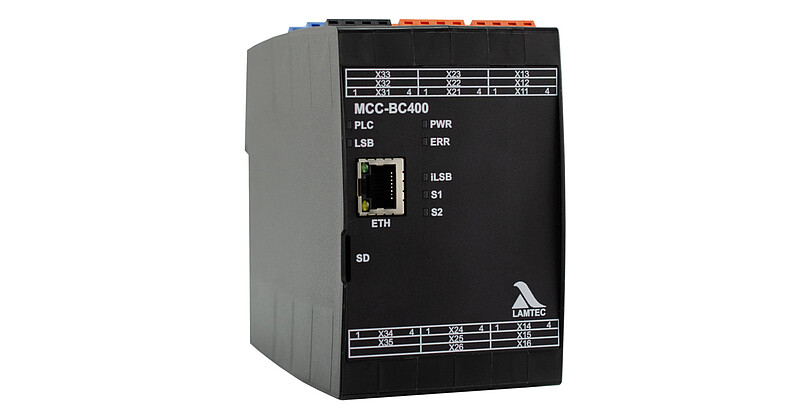

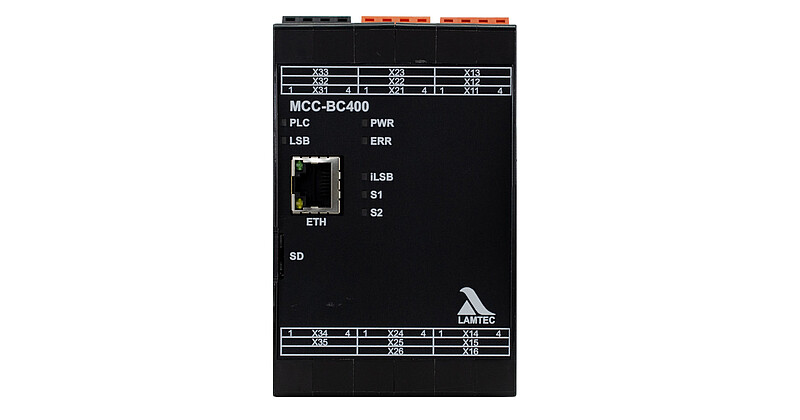

BurnerControl MCC-BC400
Burner Control
Burner Control Unit
BurnerControl MCC-BC400
- Configurable burner control
- Integrated flame monitoring system
- With valve leakage test (VLT)
- Variants for oil, gas, and dual-fuel operation
- Different processes adjustable via parameters
- Modbus TCP Interface on Board
- Start with or without pre-purge
- SIL3, CE, UL
What is the BurnerControl MCC-BC400 burner control unit?
The MCC-BC400 is a burner control unit for oil, gas, and dual-fuel burners. It controls and monitors burners of any capacity in both intermittent and continuous operation. The BC400 is a preconfigured MCC from the CMS system that functions exclusively as a burner control unit. The BC400 comes preconfigured and is therefore ready for plug-and-play use. The BC400 can be easily adapted to meet other customer-specific requirements.
The MCC-BC400 allows for various configurations to adapt to the specific application and is therefore capable of replacing various combustion controllers available on the market. The integrated Modbus TCP interface enables easy signal exchange and can reduce wiring effort as well as save space in the control cabinet.
MCC-BC400 comes in 3 fuel-dependent variants:
- Gas operation BC410
- Oil operation BC420
- Dual-fuel operation BC430
Available flame monitoring:
- With internal ionization monitoring in combination with ionization electrode
- With internal optical monitoring in combination with FFS07 or FFS08
- Flame monitoring via digital input, for example with F200K or F300K
| Technical Data | |
| Approvals |
EC Type Examination Certificate according to 2014/68/EU (Pressure Equipment Directive)
EC Type Examination Certificate according to 2016/426/EU (Gas Appliances Regulation GAR)
SIL 3
CE Declaration of Conformity
USA and Canada
|
The Burnercontrol MCC-BC400 is a modern and powerful burner control unit. Its flexibility allows for various configurations, making it suitable for replacing a wide range of proven third-party products. In addition to the standard configurations for gas (BC410), oil (BC420), and dual-fuel burners (BC430), there are other configurations that can replicate the functions of the following automatic burner controllers.
For example…
- BC415 as a replacement for Satronic TMG740-3 or BC425 as a replacement for Satronic TMO720-4
The corresponding circuit diagrams can be found in the latest commissioning supplement.
(Note: You must log in to access the link above)
Request your replacement configuration from our sales team now at sales@lamtec.de!
BC4xx Variations
- BC41x Replacement of burner control units (fuel: gas)
e.g. FA1, Siemens (L&G) LFL and LGK, Siemens (L&G) LFE1, Durag D GF 75, Honeywell (
Kromschröder ) BCU, Fireye BurnerPro
- BC42x Replacement of burner control units (fuel: oil)
e.g. FA1, Siemens (L&G) LAL and LOK, Siemens (L&G) LAE1
- BC43x Replacement of burner control units (dual-fuel application)
e.g. FA1, Siemens (L&G) LEC1, Honeywell 7800, Siemens LGK16
- Displays and accessories
- Display UI400 (mandatory)
- Cover IP65 for UI400
- Graphical User Interface GUI6xx (Colour display with touch panel) - Bus modules
- PROFIBUS module 668R1400
- PROFINET module EBM412 - Remote Software
- CMS Remote Software for configuring the CMS system - Flame monitoring system
- Flame sensor FFS07/FFS08
- Flame scanner F200K, F300K, F152, F130I
- Ionization electrode (230 V CMS, not included in the LAMTEC portfolio)
- UV tube, strictly for intermittent operation (in progress)
You can find additional accessories in the
product catalogue.
Accessories available via our sales representatives
Further downloads can be found in the support section .
