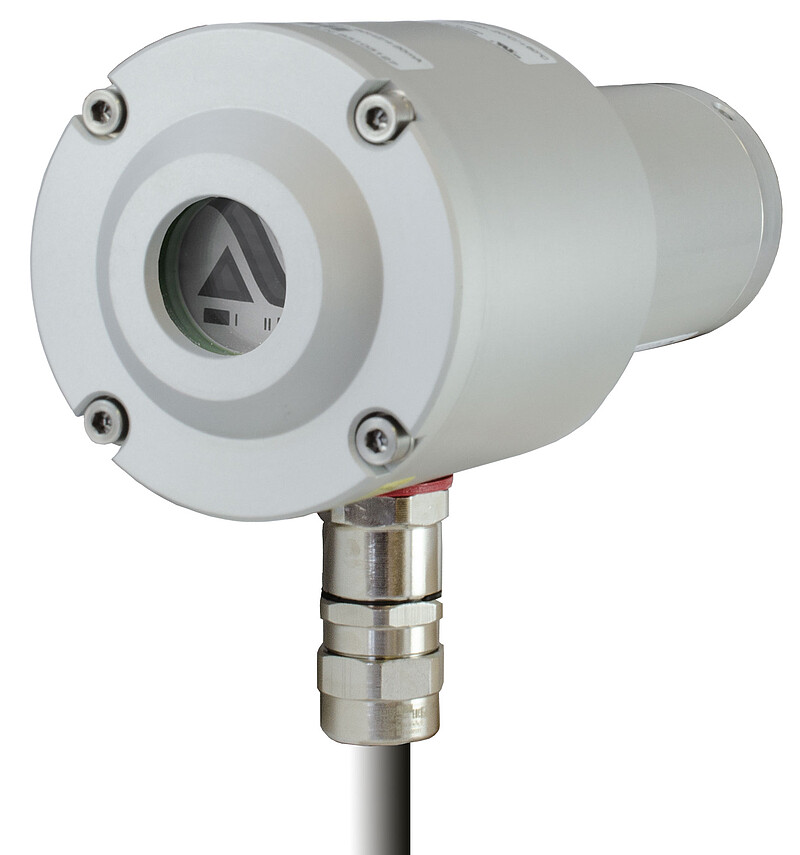

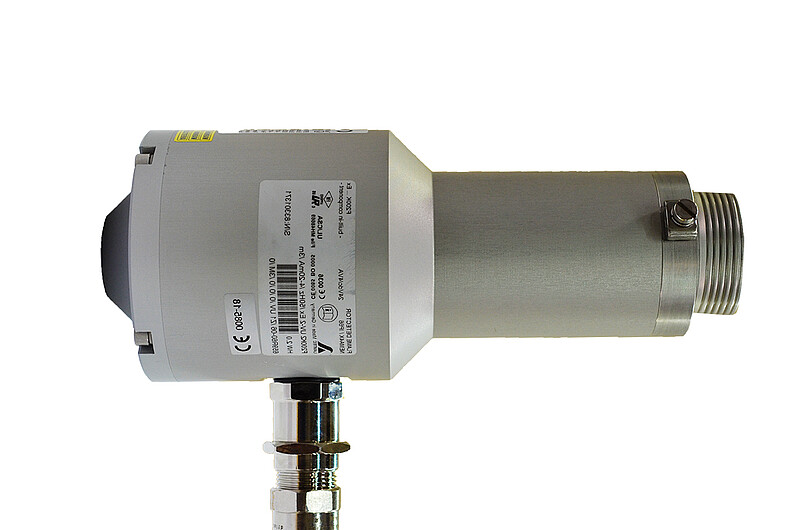

F200K Ex
Compact Flame Scanner
Your advantages at a glance:
- Ex design for Ex zone 1, 21
- For single-burner and multi-burner systems, continuous operation
- Compact housing with integrated flame sensor and circuit amplifier
- Multi-level sensitivity adjustment
- Digital flame frequency evaluation
- Status display via LED
- 2 channel system with electronic self-monitoring
- Connectable trend display for optimum flame adjustment
- SIL 3 according to DIN EN 61508-2
After establishing the Compact Flame Scanner F200K successfully for combustion with any fuel (oil, gas, etc.), LAMTEC now offers this compact flame scanner in explosive proof Ex design for many applications. In this version for potentially explosive atmospheres, the application possibilities of the F200K are extended, especially for applications in the chemical and petrochemical industries.
| Technical Data | |
| Approvals |
EC Type Examination Certificate according to 2014/68/EU (Pressure Equipment Directive)
EC Type Examination Certificate according to 2016/426/EU (Gas Appliances Regulation)
SIL 3
CE Declaration of Conformity
USA and Canada
EX certificate
|
| Compact | ||
| F200K | F300K | |
| Power supply voltage | 24 VDC | 24 VDC |
| Operating mode | Continuous operation | Continuous operation |
| Degree of protection Ex zone 1 | IP66 | X |
| Degree of protection Ex zone 2 | IP66/67 | IP66/67 |
| Sensor type | UV, IR | UV, IR, UV/IR-1 dual sensor |
| UV-2, (Ex zone 1, Ex zone 2), UV-6 FO (Ex zone 2), IR-1 (Ex zone 1, Ex zone 2), IR-2 (no Ex zone) | UV-4, UV-4.6, UV-4.6 FO, UV/IR-1, IR-4, UV/IR-1 FO (as standard all in Ex zone 2) | |
| Operating temperature Ex zone 2 | -40 °C ... +75 °C (UV-2, UV-6 FO) | -40 °C ... +85 °C |
| -40 °C ... +60 °C (IR-1) | ||
| Operating temperature Ex zone 1 | -40 °C ... +65 °C (UV-2) | X |
| -40 °C ... +60 °C (IR-1) | ||
| Ex zone 1 | Ex II 2G, zone 1 // Ex II 2D- zone 21 | X |
| Ex db lic. T6 ... T5 Gb // Ex tb IIIC T80 °C, T95 °C Db | ||
| Ex zone 2 | Ex II 3G, zone 2 // Ex II 3D zone 22 | Ex nA nC ic IIC T5 (T6) Gc X |
| Ex nA nC IIC T6 ... T5 Gc X // Ex tc IIIC T85 °C Dc X | ||
| UL resp. Class 1 Div. 2 certified | UL certified/ Cl 1 Div.2 | UL certified/ UL + Cl 1 Div. 2 |
| Operating with Remote Software | X | Yes |
| Evaluation device | Compact | Compact |
| Safety Integrity Level (SIL) | SIL 3 | SIL 3 |
| Non Compact | |||
| FFS07 | FFS08 | FFS30 | |
| Power supply voltage | F152 + 24 VDC | F152 + 24 VDC | F350 + 24 VDC |
| Operating mode | Continuous operation | Continuous operation | Continuous operation |
| Degree of protection | IP66 for Ex zone 1 | X | IP66 |
| IP67 for Ex zone 2 | No Ex zone, as standard IP67 only | IP67 | |
| Sensor type | UV, IR | UV, IR | UV, IR, UV/IR-1 Dual sensor |
| UV-1, UV-4, IR-1, IR-1 T | UV-1, UV-4, IR-1, IR-1 T, IR-1 T/S2 | UV-4, UV/IR-1, IR-2, IR-4 | |
| Operating temperature | -20 °C ... +65 °C (UV) | -20 °C ... +65 °C | -40 °C ... +85 °C |
| Operating temperature | -20 °C ... +60 °C (IR) | -20 °C ... +60 °C | |
| Ex zone 1 | II 2G Ex d IIC T6 Gb | II 2G Ex d IIC T6 Gb | |
| II 2D Ex tb IIIC T80 °C Db | X | II 2D Ex tb IIIC T80 °C Db | |
| Ex zone 2 | II 3G Ex nA IIC T5 (T6) Ge X | X | X |
| II 3D Ex tc IIIC T95 °C Dc X | X | X | |
| Display | X | X | Must be connected with FB 30 |
| UL resp. Class 1 Div. 2 certified | UL 372 - UL listed | UL 372 - UL listed | UL / Cl 1 Div. 2 |
| Operating with Remote Software | X | X | Yes |
| Evaluation device | F152 | F152 | F350 |
| Safety Integrity Level (SIL) | F152 SIL 3 | F152 SIL 3 | F350 SIL 3 |
| Brackets with screw connection |  |

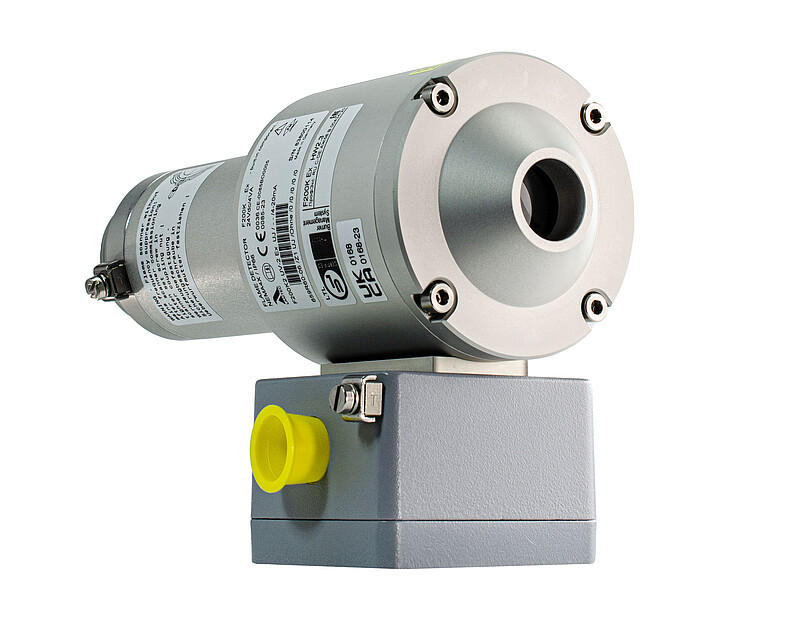

| Junction box |   |
| Flame-Scanner Testing Device FFP30 |  |
You can find additional accessories in the
product catalogue.
Accessories available via our sales representatives
Further downloads can be found in the support section.
