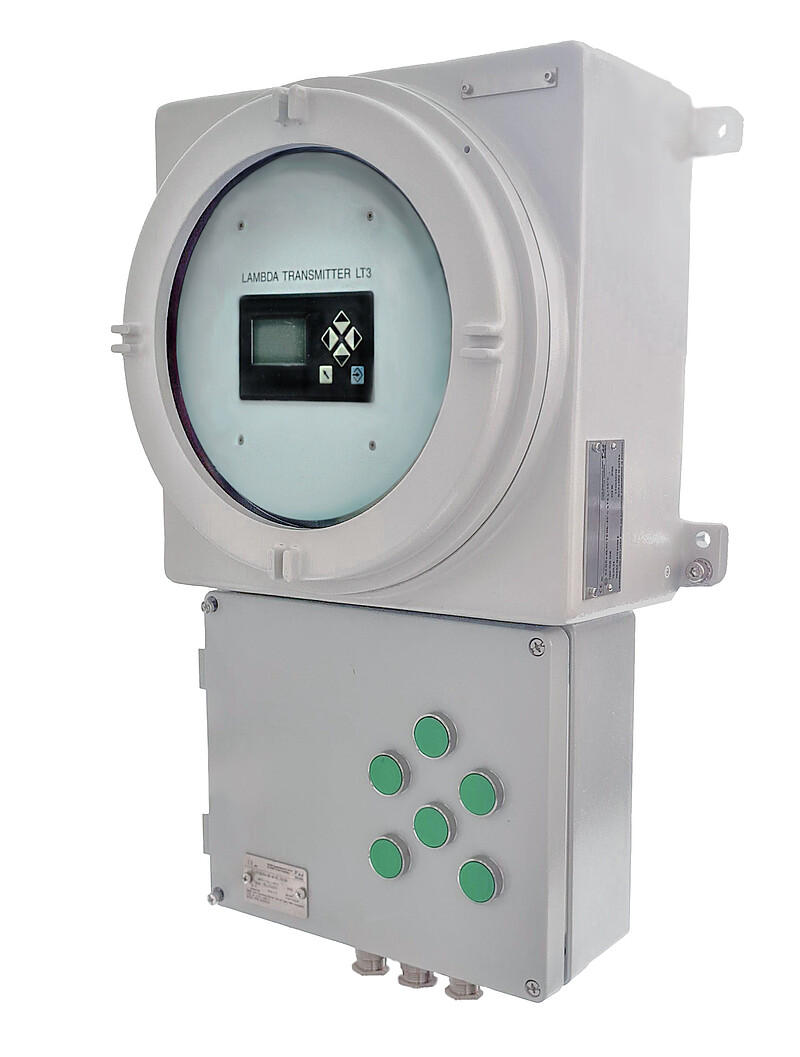

Measuring System LT3-Ex
The Solution for O2 and COe Measurement in Hazardous Areas
Your advantages at a glance:
- In combination with LS2-Ex probe for oxygen measurement (O2)
- In combination with KS1D-Ex probe for oxygen measurement (O2) and detection of oxidising flue gas components (COe)
- Robust and compact housing
- Ex zone 1 certified
- SIL1 in accordance with DIN EN 61508 in standard version
- SIL2 in accordance with DIN EN 61508 with 2 transmitters
- Proven in operation and low maintenance
Applications:
For connection to the following probes:
LS2/KS1D-Ex

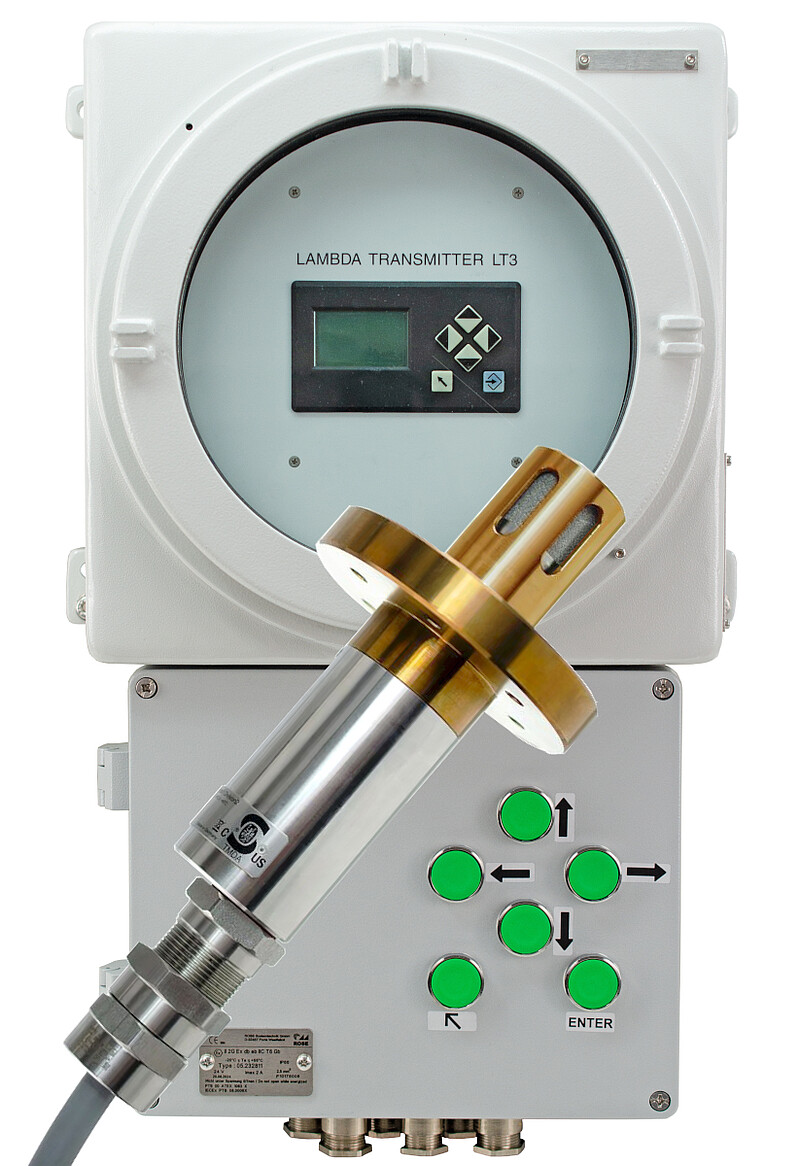

The LAMTEC Lambda Transmitter LT3-Ex in combination with the LAMTEC probes type LS2 and KS1D-Ex is a universally applicable measuring device based on microprocessor technology. It is designed in the ignition protection type "pressure resistant enclosure" (Ex d) or "increased safety" (Ex eb). This allows the entire system to be used in hazardous areas, both in zone I and zone II. This transmitter was specially developed for the simultaneous measurement of O2 concentration and detection of oxidising gas components COe (CO/H2) in flue gases from combustion systems in the superstoichiometric range (λ > 1) using the KS1D-Ex probe. However, it can also be used with the LAMTEC LS2-Ex probe for pure oxygen measurement. The measured value COe - e = equivalent represents a sum signal of all oxidisable flue gas components.
| Technical Data |
|
||||
| Approvals |
EC Type Examination Certificate
CE Declaration of Conformity
Ex certificate LT3-Ex
Ex certificate Ex probe
|
Probes for LT3-Ex | |
Sensor type | LS2-Ex/KS1D-Ex |
View |  |
Gas extraction | GED FLEX |
Range of measuring | O2: 0 ... 21 % (LS2 and KS1D) |
Messgenauigkeit | O2: ±5 % of measurement value - not more than ± 0.3 vol. % (LS2 and KS1D) |
Purging | No |
Automatic calibration | No |
Max. temperature | ≤ 1400 °C |
Dust level | ≤ 500 mg/Nm3 |
Fuel | Oil (EL), natural gas, coal, other on request |
Protection type | IP 65 |
Flue gas velocity | < 30 m/s |
Response time O2 t60/t90 | 3 s/9 s |
Response time COe t60/t90 | 9 s/13 s |
Ex zone | II2G Ex db (IIB+H2) T4 Gb |
Interfaces:
- Module for analog current outputs (0/4 ... 20 mA) / analog voltage outputs (0/2 ... 10 V)
- Digital output module
- Module for PROFIBUS DP
- Module for efficiency calculation
