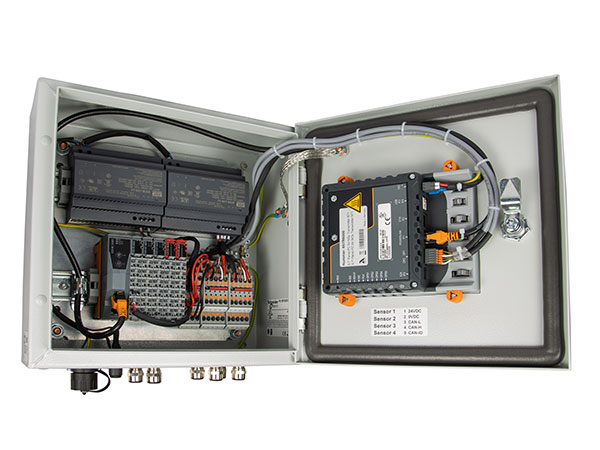

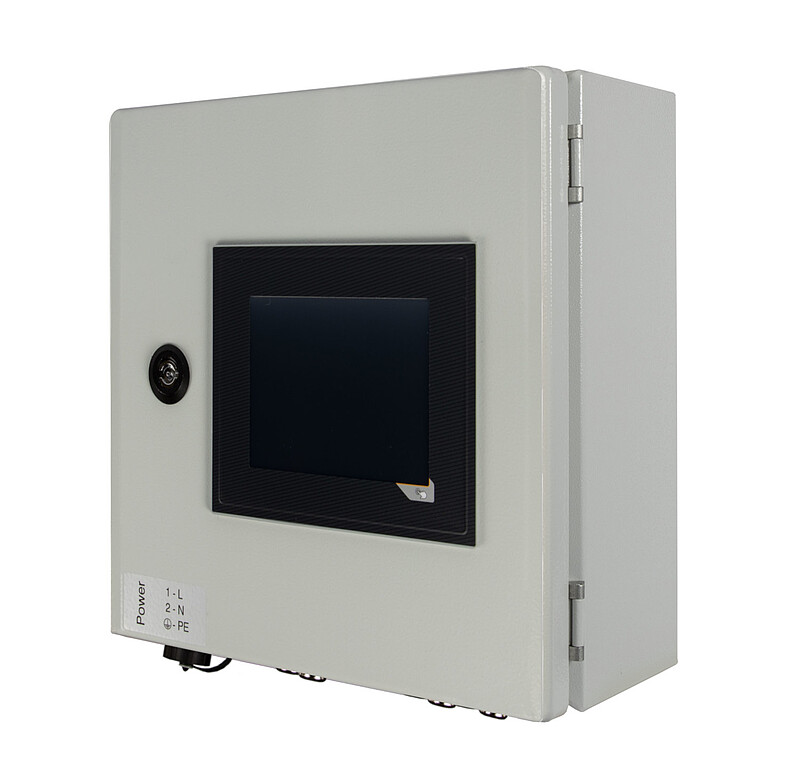

Measuring System NT1
The Solution for O2/NOx Measurement
Your advantages at a glance:
- In combination with KS2DNox probe measurement of oxygen (O2) and nitrogen oxides (NOx)
- Measurement directly in the exhaust gas (in situ), no measurement gas preparation required
- Short response time
- Measurements for monitoring and optimising

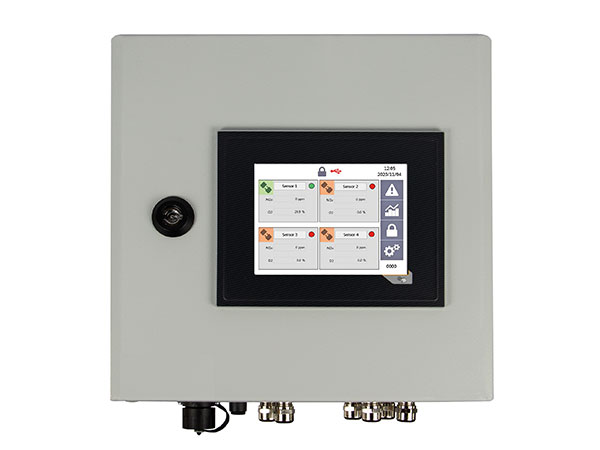

- Modern touch panel for display and operation
- Connects with up to 4 probes to each NT1
Applications

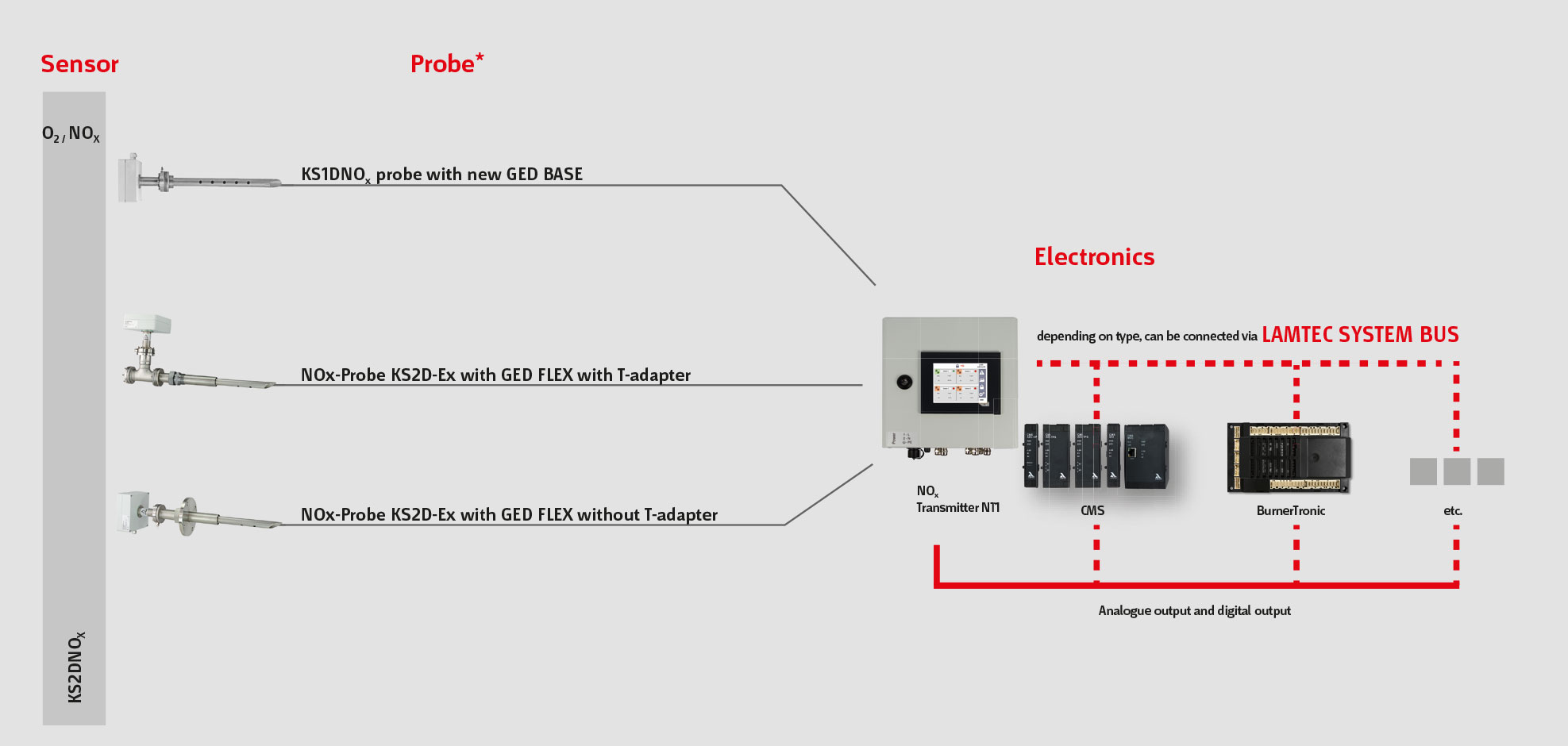

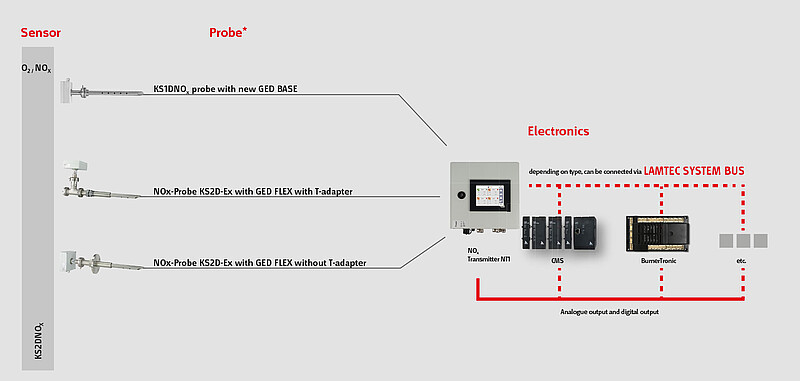

For connection with the following probes:
KS2DNOx

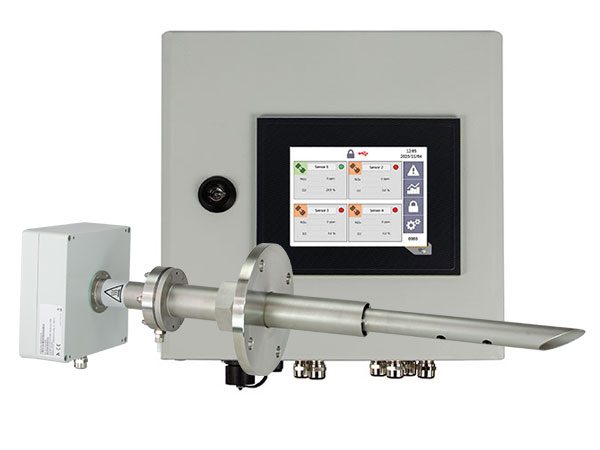

The LAMTEC NOx Transmitter NT1 in combination with the LAMTEC KS2DNOx probe is a universally applicable measuring device with an integrated touch panel. This transducer was developed in conjunction with the KS2DNOx probe and is especially used for the simultaneous measurement of O2 concentration and nitrogen oxides (NOx) in flue gases of combustion plants in the superstoichiometric range (λ > 1).
| Probes for NT1 | ||
| Sensor type | KS2DNOx | |
| View |  |  |
| Gas extraction | GED BASE | GED FLEX |
| Range of measuring | O2: 0 ... 21 vol. % | |
| Measurement accuracy | O2: ±8 % of measurement value – not more than ±0,2 vol. % | |
| Purging | No | Yes |
| Automatic calibration | No | No |
| Max. temperatur | ≤ 550 °C | ≤ 1400 °C |
| Dust level | ≤ 100 mg/Nm3 | ≤ 1000 mg/Nm3 |
| Fuel | Oil (light fuel oil), natural gas | Oil (light fuel oil), natural gas, |
| Protection type | IP65 | |
| Fuel gas velocity | 1<x<10 m/s to | <30 m/s |
| Response time O2 t60/t90 | <10 s | |
Interfaces:
- 4 analog current outputs (0/4 ... 20 mA) / voltage outputs (0 ... 10 V)
- (per module, up to 2 modules possible)
- 6 configurable digital outputs
- (per module, up to 2 modules possible)
- LAMTEC SYSTEM BUS (LSB)
You can find additional accessories in the
product catalogue.
Accessories available via our sales representatives.

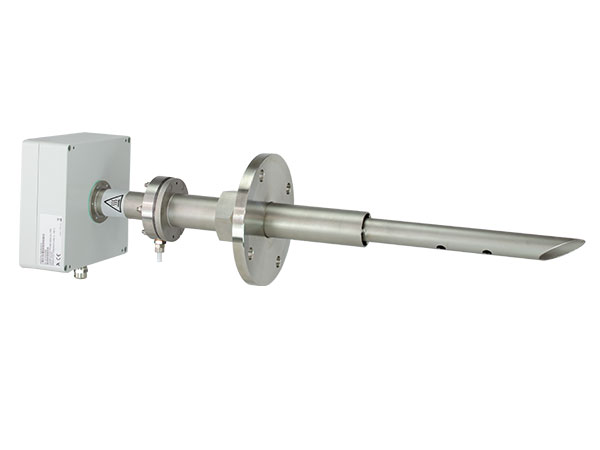

KS2D NOxProbe
Further downloads can be found in the support section .
