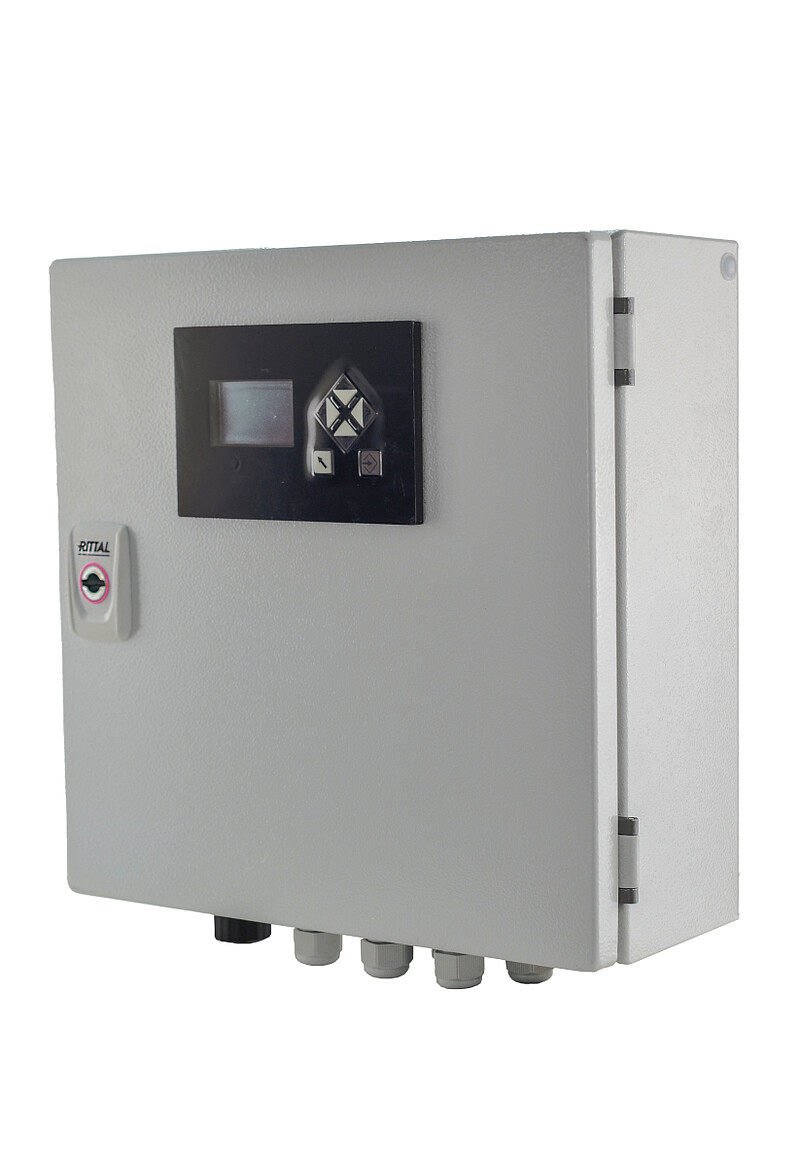

Measuring System LT4
The only SIL3-certified flue gas measuring system on the market
Your advantages at a glance:
- In combination with KS1D probes for measuring oxygen (O2) and detecting oxidizable exhaust gas components (COe)
- SIL-certified safe digital outputs
- SIL-certified safe analog outputs
- Optional function and drift test using a function test unit (FTU)
- Type approved in accordance with DIN EN 12067-2 and DIN EN 16340
- Robust, compact housing
* SIL in accordance with DIN EN 61508, Parts 1–3, and DIN EN 61511
Application:
For connection with the following probes:
KS1D ECO, KS1D-BF

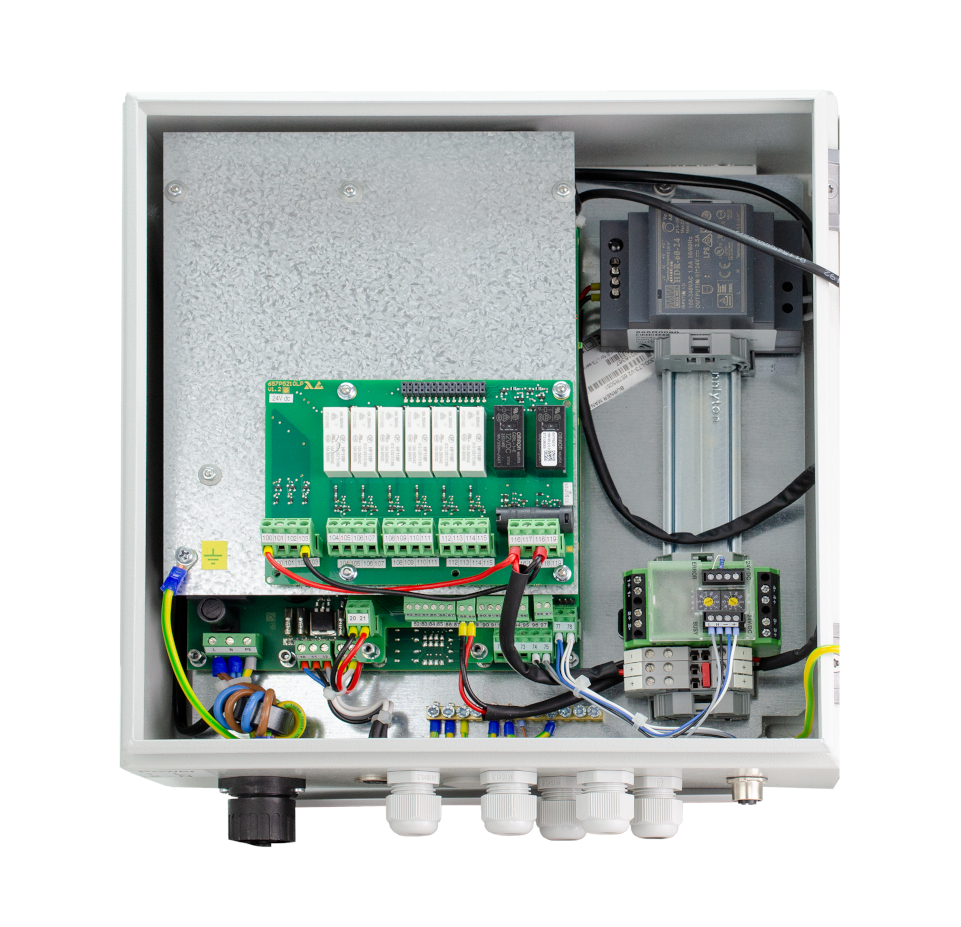

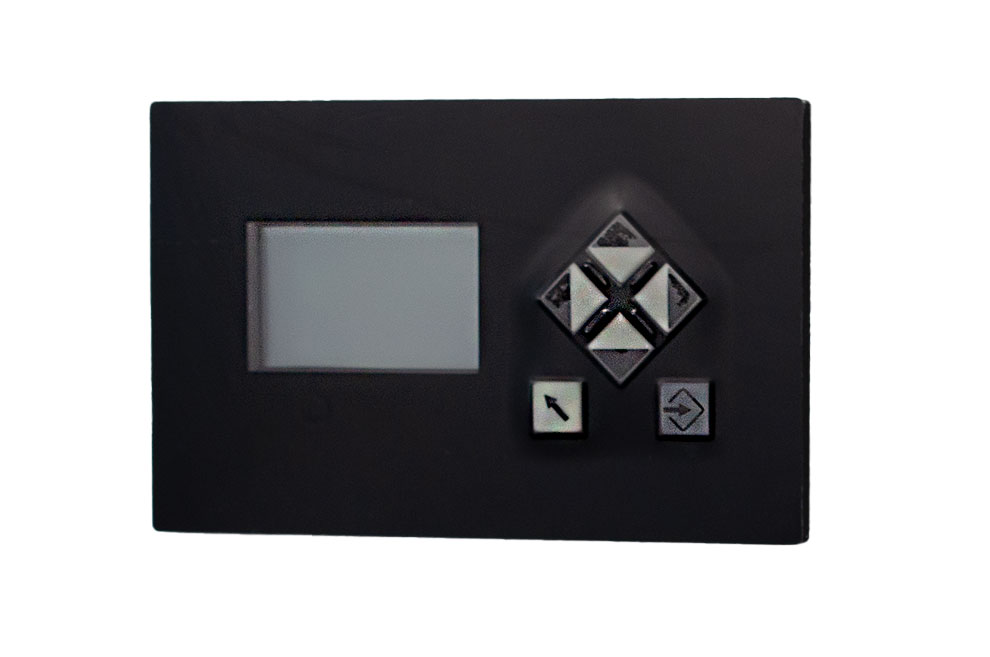

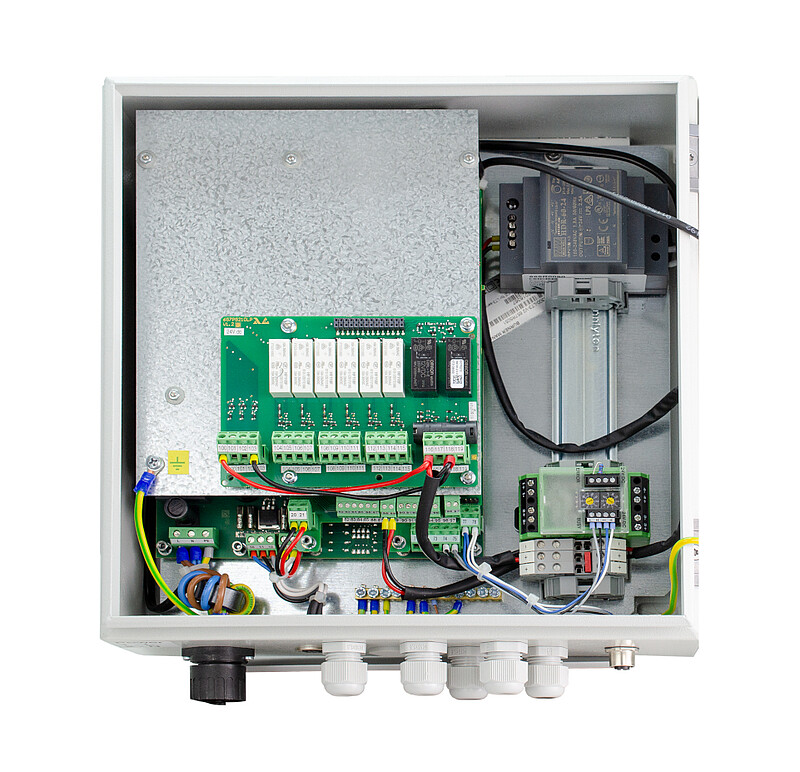

The LAMTEC Lambda Transmitter LT4, in combination with LAMTEC KS1D probes, is a microprocessor-based measuring device for universal use. Compared to the LT3 and LT2, it has an additional monitoring processor, secure digital and analog outputs, and control of the probe function test unit.
The safe digital outputs can be used to monitor processes up to a SIL3 classification, while the safe analog outputs can output measured values up to SIL 2. The optional FTU function test unit contributes to the optimization of the SIL classification, and in this combination, the LT4 is also type approved in accordance with DIN EN 12067-2. The following overview shows the SIL classifications depending on the fuel and the LT4 configuration.
Digital Outputs:
SIL 3* Oil/gas – without FTU
SIL 2* All fuels – without FTU
SIL 3* All fuels – with FTU
Analog outputs based on measured values:
SIL 2* Oil/gas – without FTU
SIL 1* All fuels – without FTU
SIL 2* All fuels – with FTU
Product standard DIN EN 16340/12067-2 with FTU
* SIL in accordance with DIN EN 61508, Parts 1–3, and DIN EN 61511
The LT4 can therefore also be used as a standalone device in combination with burner controls with the appropriate certification for control purposes. This transmitter was developed in conjunction with the KS1D probes. This transmitter is used with KS1D probes specifically for the simultaneous measurement of O2 concentration and detection of oxidizing gas components H2 and COe (CO/H2) in exhaust gases from gas and oil (EL) combustion plants in the over-stoichiometric range (λ > 1). The measured value COe represents a sum signal of all oxidizing exhaust gas components.
| Technical Data |
|
||||
| Approvals |
EC Type Examination Certificate
CE Declaration of Conformity
SIL
|
| Probes for LT4 | |||
| Sensor type | KS1D ECO | KS1D-BF | |
| View |  |  |  |
| Gas extraction | GED ECO | GED BASE | GED FLEX |
| Range of measuring | O2: 0 ... 21 % (LS2 and KS1D) | ||
| Measurement accuracy | O2: ±5 % of measurement value – not more than ±0,3 Vol. % | ||
| Purging | No | No | X |
| Automatic calibration | No | X | X |
| Max. temperatur | ≤ 300 °C | ≤ 550 °C | ≤ 1400 °C |
| Dust level | ≤ 100 mg/Nm3 | ≤ 200 mg/Nm3 | ≤ 1000 mg/Nm3 |
| Fuel | Oil (light fuel oil), natural gas | Oil (light fuel oil), natural gas | Oil (light fuel oil), natural gas, |
| Protection type | IP42 | IP65 | |
| Fuel gas velocity | 1<x<6 m/s to | 1<x<10 m/s to | <30 m/s |
| Response time O2 t60/t90 | 3 s/9 s | ||
| Response time COe t60/t90 | 9 s/13 s | ||
Interfaces:
- Module for analog current outputs (0/4 ... 20 mA) / voltage outputs (0/2 ... 10 V)
- Module for PROFIBUS DP
- Module for efficiency calculation including measurement of exhaust gas temperatures

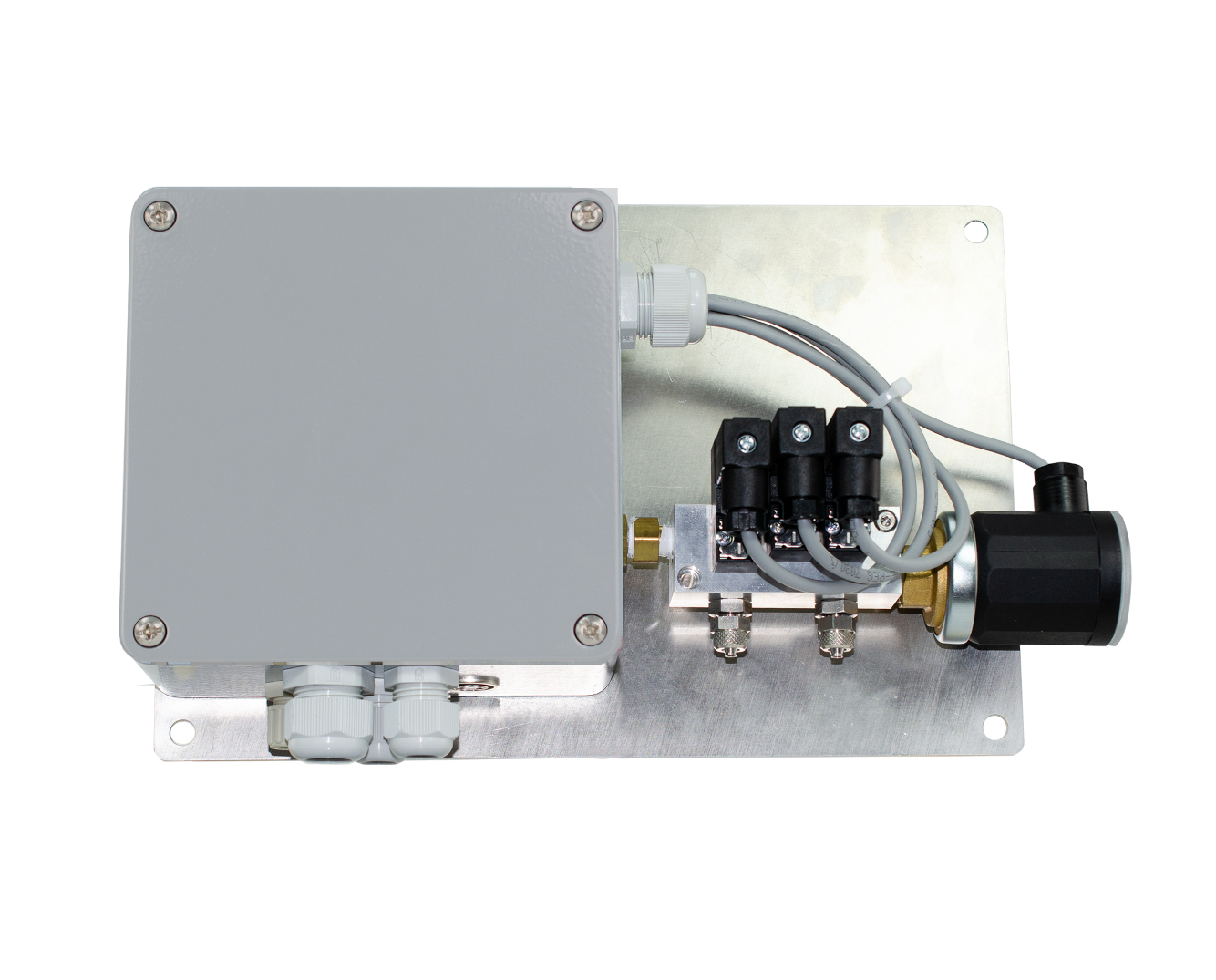

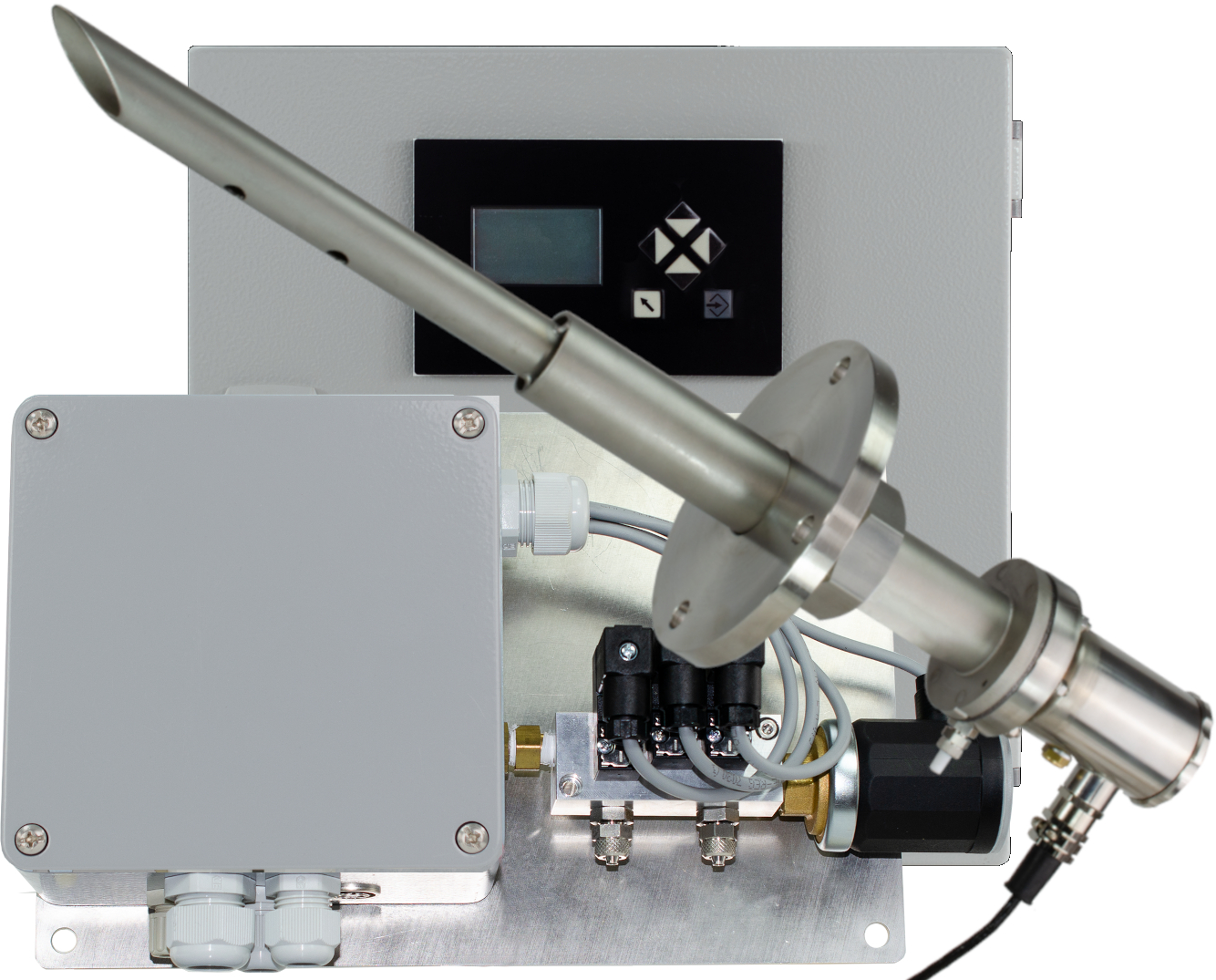

Function Test Unit FTU (optional)
- Extension to include a function and drift test
- To comply with 2016/426 (Gas Appliances Regulation GAR)
- To comply with DIN EN 12067-2
You can find additional accessories in the
product catalogue.
Accessories available via our sales representatives

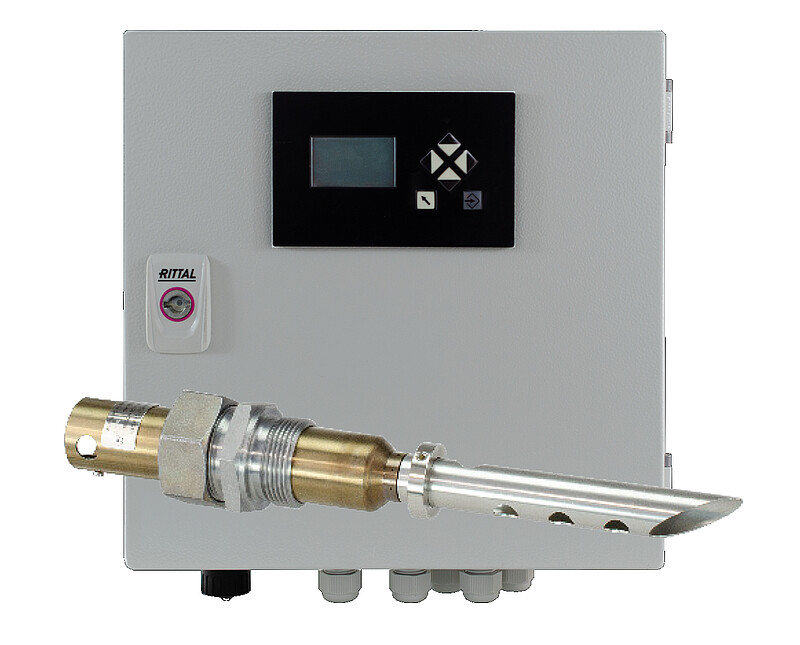

Sonde KS1D ECO
Further downloads can be found in the support section .
