Measuring System LT2
The Universal Solution for O2 and CO/H2 Measurement
Your advantages at a glance:
- In combination with LS2:
Measurement of oxygen (O2) - In combination with KS1D: measurement of oxygen (O2) and detection of oxidising flue gas components CO/H2 (COe)
- Measurements for monitoring and optimization
- Proven in operation and low maintenance
- SIL1 in accordance with DIN EN 61508
Applications:

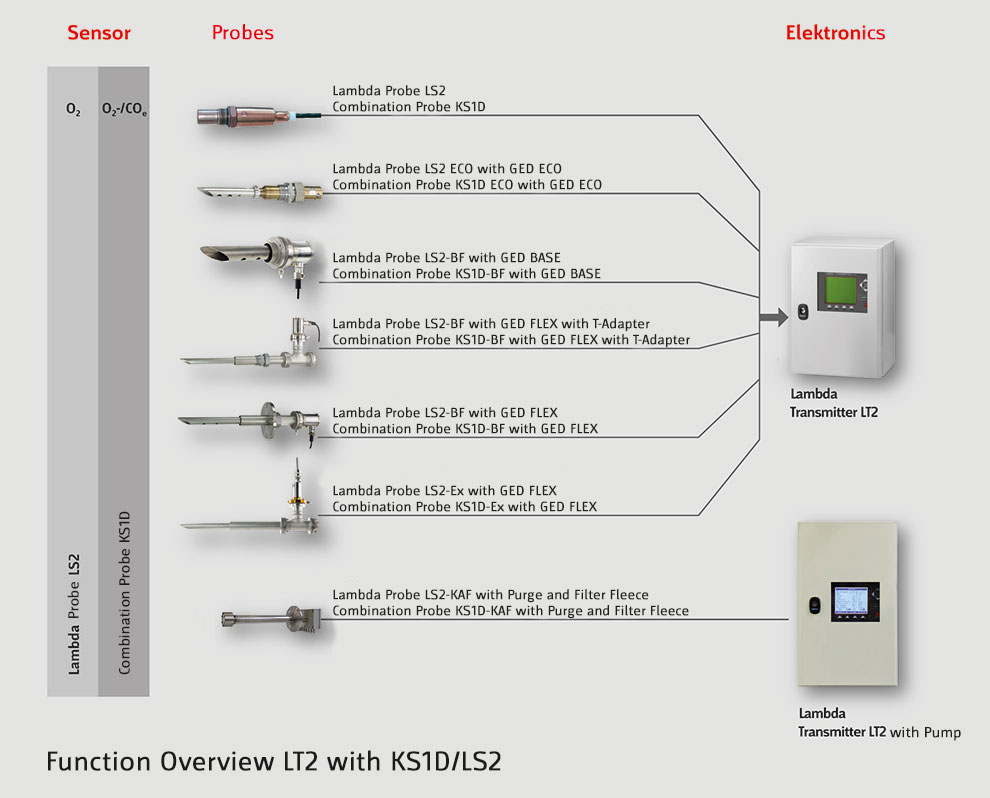

For connecting the following probes:
LS2/KS1D ECO, LS2/KS1D-BF, LS2/KS1D Ex, LS2/KS1D KAF
The LAMTEC Lambda Transmitter LT2, in combination with the LAMTEC probes LS2 and KS1D, is a universally applicable microprocessor-based measuring device. It is the all-round alternative to the LT3. In combination with the KS1D probe, the LT2 is used for the simultaneous measurement of the O2 concentration and detection of oxidising gas components CO/H2 (COe) in flue gases of combustion plants. The measured value COe represents a sum signal of all oxidisable flue gas components. However, it can also be used with the classic LAMTEC LS2 probe for oxygen measurement.
The LT2 can optionally control the purging and automatic calibration of the probe. All available LS2 and KS1D probes, such as the Ex probe or the KAF probe, can also be connected to it.
If required, the LT2 is also available with an EX enclosure with the following approval:
- Ex II 2G Ex d IIB+H2 T5 Gb
- Ex II 2D Ex tb IIIC T100 °C Db
- Labelling according to IECEx:
- Ex II 2G Ex d IIB+H2 T5 Gb
- Ex II 2D Ex tb IIIC T100 °C Db
A SIL 1 certificate in accordance with DIN EN 61508 for safe measurement and limit value output in combination with the KS1D probe is available as a special configuration of the LT2.
| Technical Data |
|
||||
| Approvals |
EC Type Examination Certificate
CE Declaration of Conformity
SIL1
|
| Probes for LT2 | |||||
| Sensor type | LS2/KS1D-Ex | LS2/KS1D ECO | LS2/KS1D-BF | LS2/KS1D-KAF | |
| View |
| |
|
|
|
| Gas extraction | GED FLEX | GED ECO | GED BASE | GED FLEX |
|
| Range of measuring | O2: 0 ... 21 % (LS2 and KS1D) | ||||
| Measuring accuracy | O2: ±5 % of measurement value - not more than ± 0.3 vol. % (LS2 and KS1D) | ||||
| Purging | X | No | No | X | X |
| Automatic calibration | X | No | X | X | X |
| Max. temperature | ≤ 1400 °C | ≤ 300 °C | ≤ 550 °C | ≤ 1400 °C | ≤ 450 °C |
| Dust level | ≤1000 mg/Nm3 | ≤100 mg/Nm3 | ≤200 mg/Nm3 | ≤1000 mg/Nm3 | ≤2000 mg/Nm3 |
| Fuel | Oil (light fuel oil), natural gas, other on request | Oil (light fuel oil), natural gas | Oil (light fuel oil), natural gas, other on request | Oil (light fuel oil, heavy fuel oil), natural gas, biogas | |
| Protection type | IP 65 | IP 42 | IP 65 | ||
| Flue gas velocity | <30 m/s | 1<x<6 m/s to | 1<x<10 m/s to | <30 m/s | 1<x<16 m/s |
| Response time O2 t60/t90 | 3 s/9 s | ||||
| Response time COe t60/t90 | 9 s/13 s | ||||
| Ex zone | II2G Ex db (IIB+H2) T4 Gb | – | |||
Interfaces:
- 4 analog current outputs (0/4 ... 20 mA) / voltage outputs (0 ... 10 V)
(1/2 x standard, 3/2 x optional, configurable) - 7 configurable digital outputs
- 4 analog inputs (0/4 ... 20 mA)
(1x standard, 3x optional, configurable) - Modbus RTU
- PROFIBUS DP
- PC-Remote-Display Software
- SIL1 according to DIN EN 61508
Function extensions:
- PID-O2 controller
- Load-dependent and fuel-specific limit values/limit curves
- Measurement of exhaust gas temperature and calculation of combustion efficiency
- Reference air pump
- Automatic calibration
- Purge unit
You can find additional accessories in the
product catalogue.
Accessories available via our sales representatives
KS1D-KAF Probe
Further downloads can be found in the support section .
