Ignition Systems
Your advantages at a glance:
- No flashback
- Local flame formation
- Spot flame monitoring
- No external gas/air mixer required
- No ignitable mixture in the supply lines
- Variants for Ex 1 and Ex 2

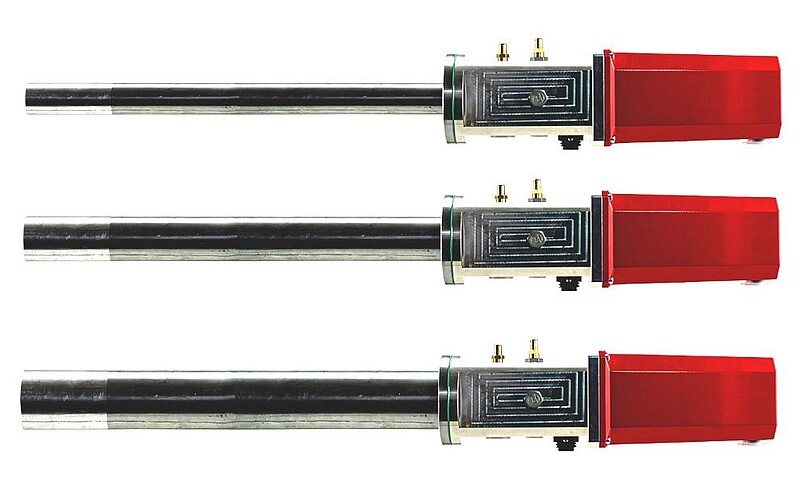

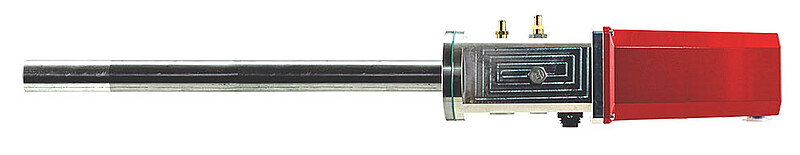

The LAMTEC pilot burners of the GFI series are used for the safe ignition of main burners on industrial furnaces and firing systems. The standard version of the GFI series is equipped with an integrated ignition transformer, ionisation electrode and SIL 3-certified, EU type-tested ionisation flame scanner (IFS).
The pilot burner is used in industrial furnaces, thermoprocessing plants, and boilers for gas, oil, and solid fuels.
It is used for the following purposes:
- Preheating the system
- Ignition of the main burner
- Supporting the main burner flame
Main burner ignition assisted by natural gas, LPG, coke gas. Can ignite any type of gas, LFO or HFO.
| Technical Data | |
| Approvals |
SIL 3 GFI 1st generation
SIL 3 GFI 2nd generation
CE Declaration of Conformity
|
GFI Safe Area
- Safe Area
- 15 m max. length of the pilot burner tube
- Integrated display with foil indicator
GFI Ex zone 2
- Ex zone 2
- 15 m max. length of the pilot burner tube
- Display without indication

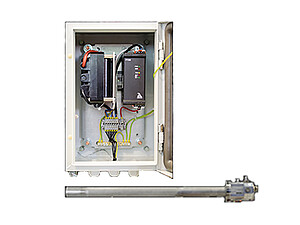

GFI with external power unit
- Ex zone 1, or 2
- 10 m max. length of the pilot burner tube
- With external power unit
| GFI 35 | GFI 48 | GFI 70 | GFI 89 | |
| Ignition | Ignition of the main burner with support of NG, LPG, coke gas. Can ignite any type of gas, LFO or HFO | |||
| Temperature | -20 °C ... +60 °C | |||
| Application area | Safe area Ex zone 1, Ex zone 2 ATEX, IECEx | |||
| Tube diameter (mm) | 35 x 2 | 48,3 x 2 | 70 x 2 | 88,9 x 2 |
| Thermal power (kW) | 27 - 57 | Natural gas 70 - 140 Propane 70 - 130 | 150 - 300 | 400 - 700 |
| Flame length up to (mm) | 600 | 800 | 1.200 | 2.000 |
| Gas volume flow at 200 mbar gas inlet pressure (Nm3/h) | Natural gas 5,8 Propane 5,8 | Natural gas 15 Propane 6 | Natural gas 30 Propane 12 | Natural gas 70 Propane 28 |
| Sliding flange DN - PN | 50 - 6 | 50 - 6 | 65 - 6 | 80 - 6 |
| Thermo Jacket |  |
| High pressure needle valve |  |
| Ball valve |  |
| Double nipple |  |
| Feed-through flange |  |
You can find additional accessories in the
product catalogue.
Accessories available via our sales representatives
