Measuring System LT3-F
SIL 2 certified combustion optimization (CO/H2 Control)
Your advantages at a glance:
- In combination with KS1D probes for oxygen measurement (O2) and detection of oxidising flue gas components (COe)
- SIL 2 certified combustion optimization in conjunction with LAMTEC burner control, in accordance with DIN EN 61508
- Cost-effective, proven in operation, and low maintenance
Applications:
For connection with the following probes:
KS1D ECO, KS1D-BF, KS1D-Ex

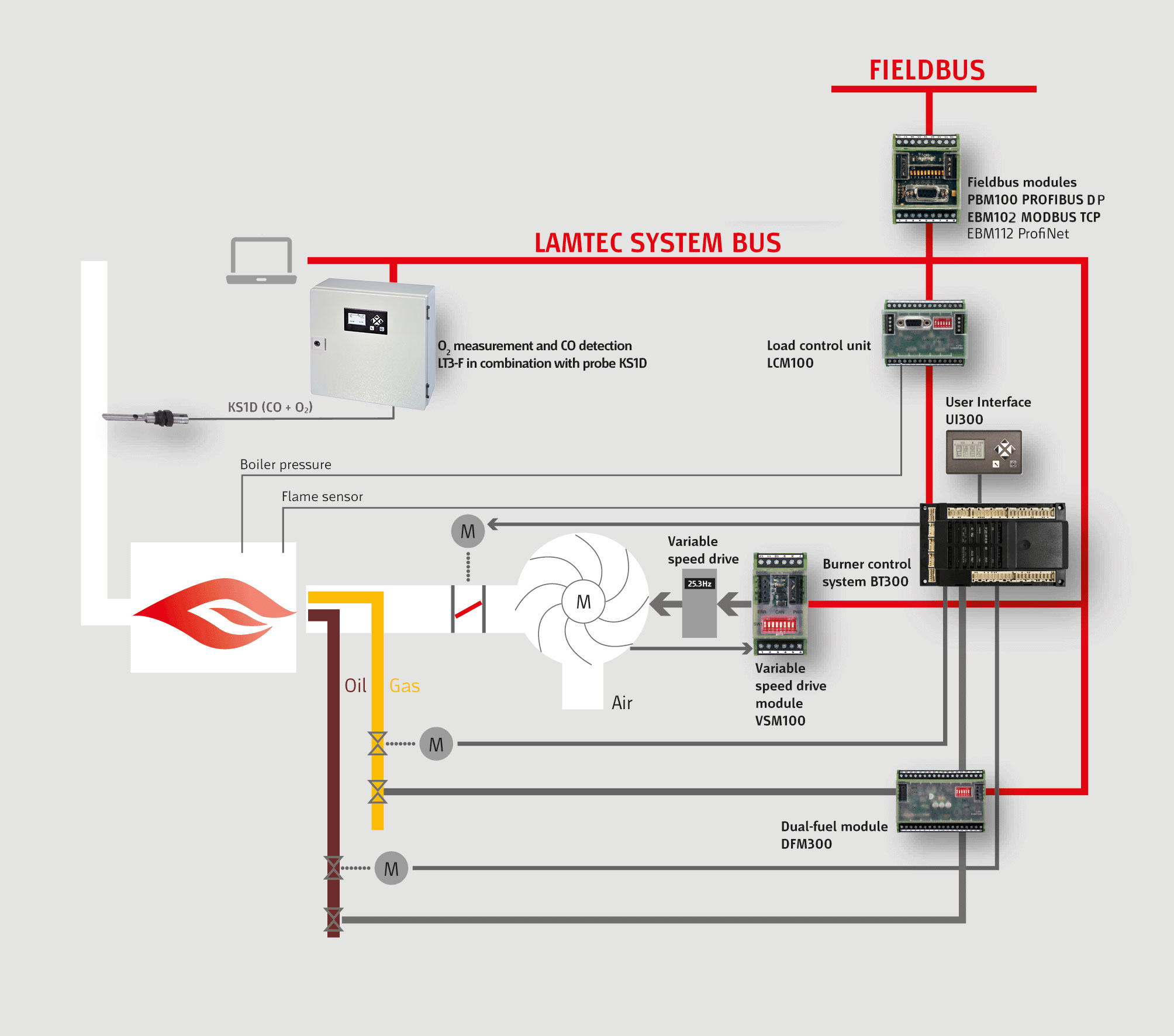

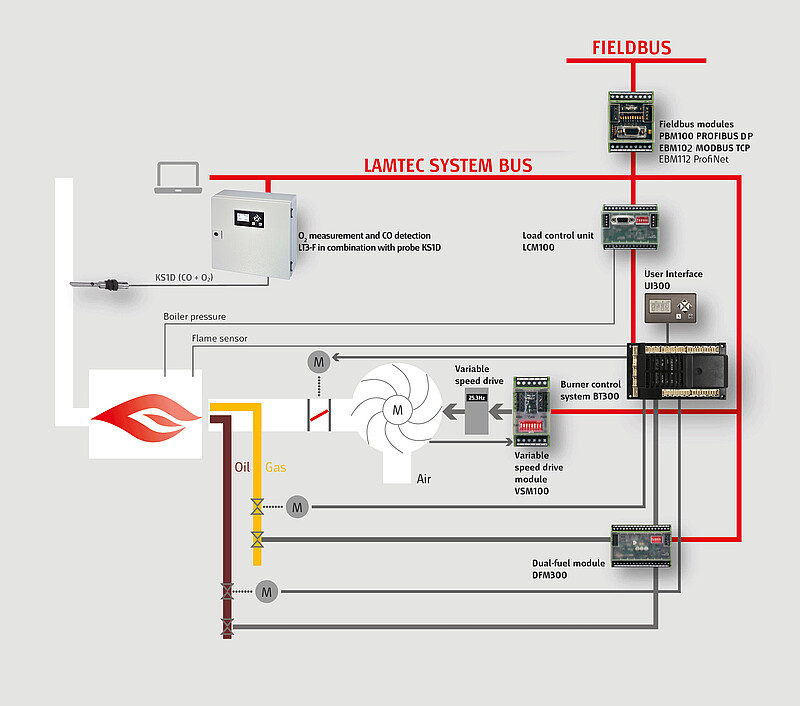

The LAMTEC Lambda Transmitter LT3-F in combination with the LAMTEC KS1D probes is a universally applicable microprocessor-based measuring device and has an additional monitoring processor unlike the LT3 and LT2. In conjunction with the LAMTEC BT300/ETAMATIC/FMS/VMS/CMS burner control systems, the LT3-F functions as a SIL 2 capable measuring system for adaptive CO/H2 combustion optimization. (SIL2 in accordance with DIN EN 61508)
| Technical Data | |
| Approvals |
EC Type Examination Certificate
CE Declaration of Conformity
SIL2
|
| Probes for LT3-F | ||||
| Probe type | KS1D-Ex | KS1D ECO | KS1D-BF | |
| Gas extraction | GED FLEX | GED ECO | GED BASE | GED FLEX |
| View |
| |  |
|
| Range of measuring | O2: 0 ... 21 % | |||
| Measurement accuracy | O2: ±5 % of measurement value - not more than ± 0.3 vol. % | |||
| Purging | X | No | No | X |
| Automatic calibration | X | No | X | X |
| Max. temperature | ≤ 1400 °C | ≤ 300 °C | ≤ 550 °C | ≤ 1400 °C |
| Dust level | ≤ 1000 mg/Nm3 | ≤ 100 mg/Nm3 | ≤ 200 mg/Nm3 | ≤ 1000 mg/Nm3 |
| Fuel | Oil (light fuel oil), natural gas, other on request | Oil (light fuel oil), natural gas | Oil (light fuel oil), natural gas, other on request | |
| Protection type | IP 65 | IP 42 | IP 65 | |
| Flue gas velocity | < 30 m/s | 1<x<6 m/s to 100 °C in the | 1<x<10 m/s to 100 °C in the | < 30 m/s |
| Response time O2 t60/t90 | 3 s/9 s | |||
| Rsponse time COe t60/t90 | 9 s/13 s | |||
| Ex zone | II2G Ex db (IIB+H2) T4 Gb | – | ||
Interfaces:
- Module for analog current outputs (0/4 ... 20 mA) / voltage outputs (0/2 ... 10 V)
- Digital output module for operating and status messages as well as limit values
- Module for PROFIBUS DP
- Module for efficiency calculation including measurement of exhaust gas temperatures
You can find additional accessories in the
product catalogue.
Accessories are available from our sales representatives.
Probe KS1D ECO
Further downloads can be found in the support section .
