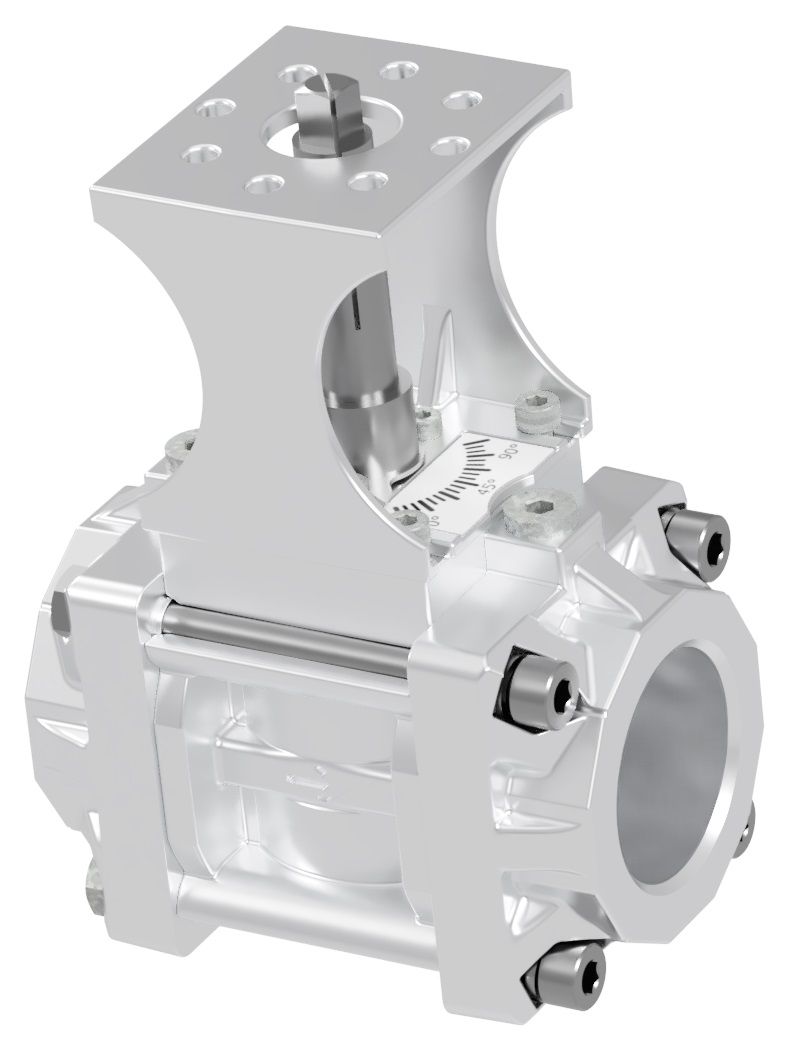

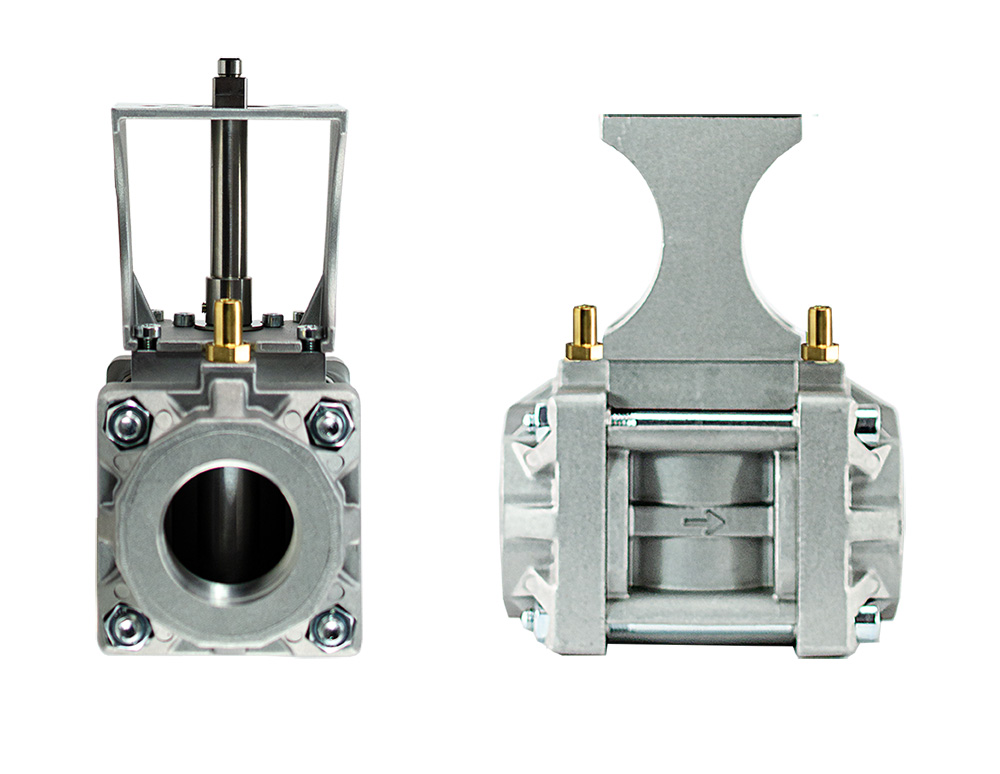

Linear gas control valve SVL
Your advantages at a glance:
- For gases of gas familiy 1, 2, 3, and hydrogen (H2)
- Sizes: SVL08 to SVL50
- Max. operating pressure: 500 mbar
- Operating temperature: -20 °C to +60 °C

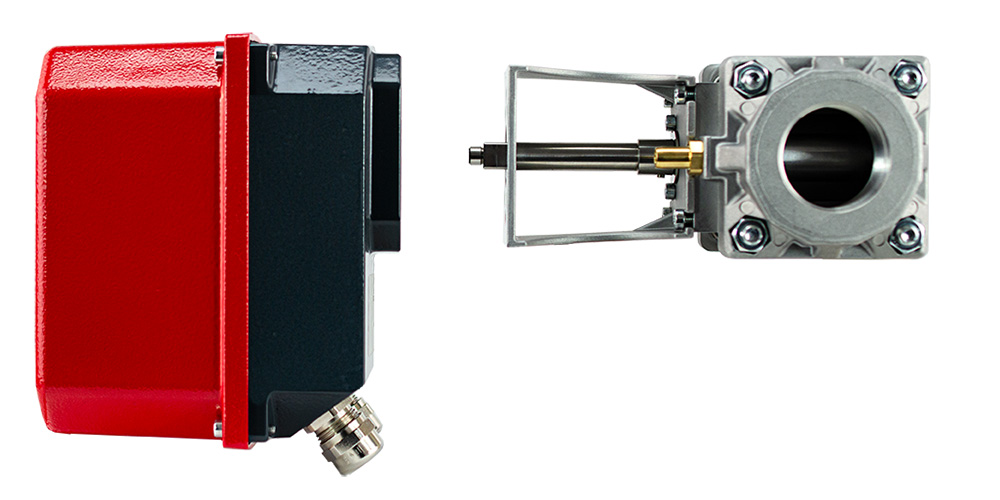

- Simple mounting on LAMTEC actuator 668M20XX with square socket 11.1 x 11.1 mm
- No additional mounting structure is required
- The bracket is part of the valve

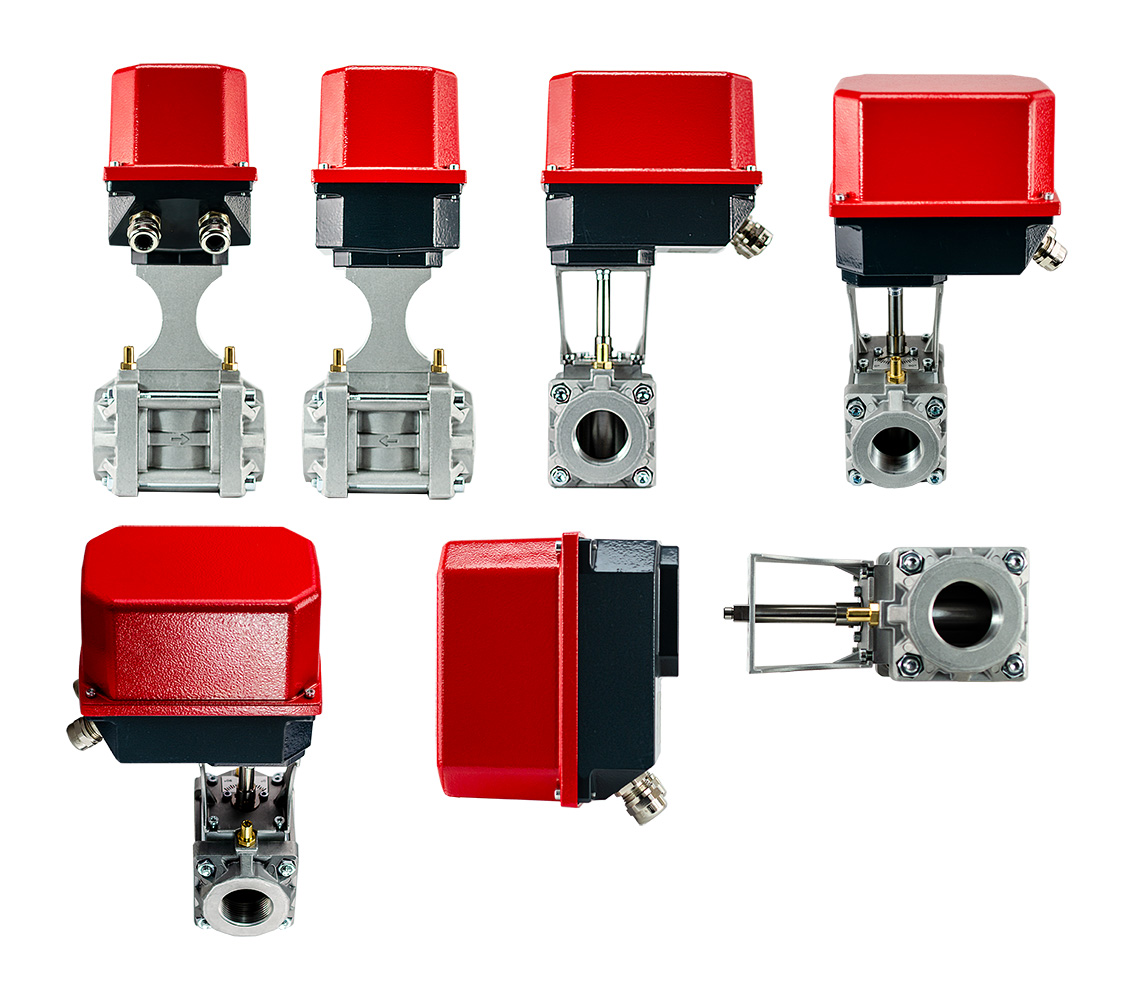

The SVL gas control valve are used to adjust the volume of gas and cold air in gas and air consumption devices. They can be used with an attached actuator for volume flow control. By using an external square, the valves can be simply plugged and screwed onto our actuators. No separate bracket or coupling is required.
| Technical Data | |
| Declarations of conformity |
CE Declaration of Conformity
|
| A·10·"NOMINAL DIAMETER" | Selection |
| NOMINAL DIAMETER··DN08·-·LINEAR | 08 |
| NOMINAL DIAMETER··DN15·-·LINEAR | 15 |
| NOMINAL DIAMETER··DN20·-·LINEAR | 20 |
| NOMINAL DIAMETER··DN25·-·LINEAR | 25 |
| NOMINAL DIAMETER··DN32·-·LINEAR | 32 |
| NOMINAL DIAMETER··DN40·-·LINEAR | 40 |
| NOMINAL DIAMETER··DN50·-·NOT LINEAR | 50 |
| A·20·"GAS CONNECTION" | Selection |
| GAS CONNECTION·INSIDE THREAD·Rp·1/2" | R12 |
| GAS CONNECTION·INSIDE THREAD·Rp·3/4" | R34 |
| GAS CONNECTION·INSIDE THREAD·Rp·1" | R1 |
| GAS CONNECTION·INSIDE THREAD·Rp·1·1/4" | R114 |
| GAS CONNECTION·INSIDE THREAD·Rp·1·1/2" | R112 |
| GAS CONNECTION·INSIDE THREAD·Rp·2" | R2 |
| GAS CONNECTION·INSIDE THREAD·NPT·1/2" | N12 |
| GAS CONNECTION·INSIDE THREAD·NPT·3/4" | N34 |
| GAS CONNECTION·INSIDE THREAD·NPT·1" | N1 |
| GAS CONNECTION·INSIDE THREAD·NPT·1·1/4" | N114 |
| GAS CONNECTION·INSIDE THREAD·NPT·1·1/2" | N112 |
| GAS CONNECTION·INSIDE THREAD·NPT·2" | N2 |
| A·30·"DIRECTION OF ROTATION" | Selection |
| FOR·RIGHT·TURNING·DRIVES | R |
| A·40·"HAND FEED" | Selection |
| WITHOUT·HAND FEED·for·mounting·on·actuator | 0 |
| WITH·HAND FEED·infinitely ·adjustable·locking lever | H |
