Measuring System LT3
The Compact Solution for Robust O2 and CO/H2 Measurement
Your advantages at a glance:
- In combination with LS2 Probe for measurement of oxygen (O2)
- In combination with KS1D Probe for measurement of oxygen (O2) and detection of oxidising flue gas components CO/H2 (COe)
- Robust, compact steel housing, optional stainless steel and IP65
- Cost-effective, proven in operation, and low maintenance
- SIL1 in standard version
- SIL2 with 2 transmitters
Applications
For connection with the following probes:

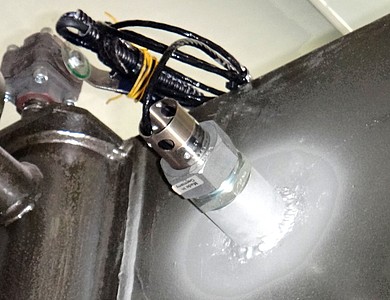

LS2/KS1D ECO, LS2/KS1D-HT, LS2/KS1D-BF, LS2/KS1D-Ex
The LAMTEC Lambda Transmitter LT3, in combination with the LAMTEC probes type LS2 and KS1D, is a universally applicable microprocessor-based measuring device and the cost-effective alternative to the more flexible LT2. In combination with the KS1D probe, the LT3 is used for simultaneous measurement of the O2 concentration and detection of oxidising gas components CO/H2 (COe) in flue gases of combustion plants. The measured value COe represents a sum signal of all oxidisable flue gas components. However, it can also be used with the classic LAMTEC LS2 probe for pure oxygen measurement.
A SIL1 certificate for safe measurement and limit value output in combination with the KS1D probe is available as a special configuration of the LT3.

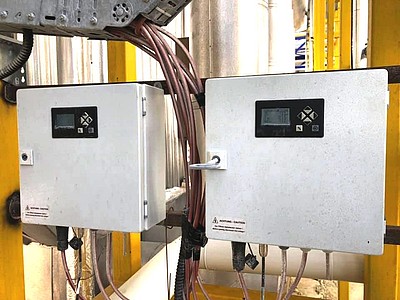

As a 1oo2 special configuration of two LT3 with one KS1D probe each, the system is certified for safe measurement and limit value output in accordance with SIL2.
| Technical Data | |
| Approvals |
EC Type Examination Certificate
CE Declaration of Conformity
USA and Canada
SIL1
SIL2
|

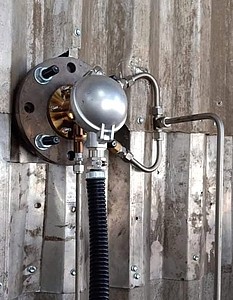

| Probes for LT3 | ||||

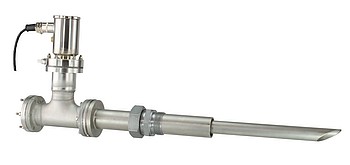

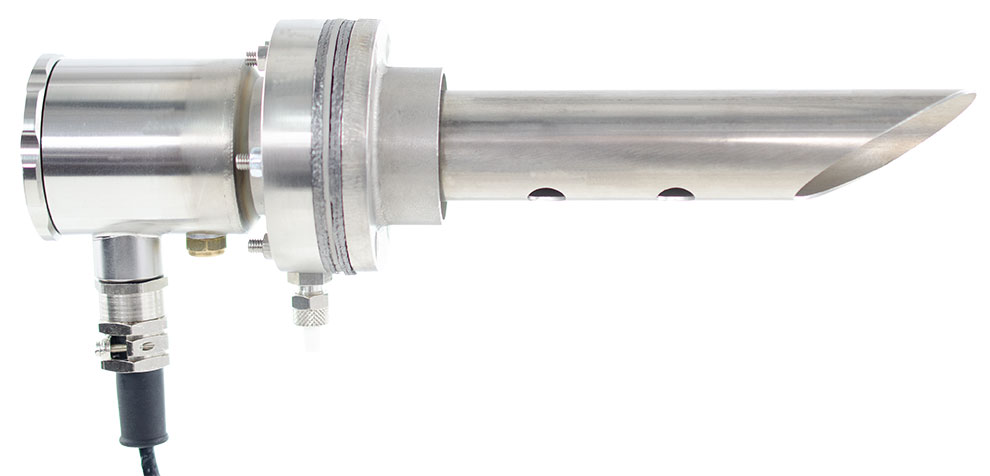

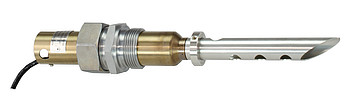

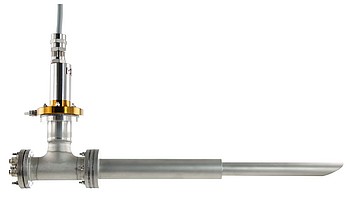

| Probe type | LS2/KS1D-EX | LS2/KS1D ECO | LS2/KS1D-HT and LS2/KS1D-BF | |
| Gas extraction | GED FLEX | GED ECO | GED BASE | GED FLEX |
| View |
| |
|
|
| Range of measuring | O2: 0 ... 21 % (LS2 and KS1D) | |||
| Measurement accuracy | O2: ±5 % of measurement value - not more than ± 0.3 vol. % (LS2 and KS1D) | |||
| Purging | X | No | No | X |
| Automatic calibration | X | No | X | X |
| Max. temperature | ≤ 1400 °C | ≤ 300 °C | ≤ 550 °C | ≤ 1400 °C |
| Dust level | ≤ 1000 mg/Nm3 | ≤ 100 mg/Nm3 | ≤ 200 mg/Nm3 | ≤ 1000 mg/Nm3 |
| Fuel | Oil (light fuel oil), natural gas, other on request | Oil (light fuel oil), natural gas | Oil (light fuel oil), natural gas, other on request | |
| Protection type | IP 65 | IP 42 | IP 65 | |
| Flue gas velocity | < 30 m/s | 1<x<6 m/s to 100 °C in the | 1<x<10 m/s to 100 °C in the | < 30 m/s |
| Response time O2 t60/t90 | 3 s/9 s | |||
| Rsponse time COe t60/t90 | 9 s/13 s | |||
| Ex zone | II2G Ex db (IIB+H2) T4 Gb | – | ||
Interfaces:
- Module for analog current outputs (0/4 ... 20 mA) / analog voltage outputs (0/2 ... 10 V)
- Digital output module for operating and status messages as well as limit values
- Module for PROFIBUS DP
- Module for efficiency calculation incl. measurement of exhaust gas temperatures
You can find additional accessories in the
product catalogue.
Accessories available via our sales representatives
KS1D ECO
Further downloads can be found in the support section.
